Name: Corrosion-Resistant Ultrasonic Environmental Monitor with RS485 Modbus Protocol and High-Efficiency Heating Function
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KQS-CSYT-A
Price: 5,000.00 USD
Availability: InStock

집 > 상품 > 환경 모니터링 >

Corrosion-Resistant Ultrasonic Environmental Monitor with RS485 Modbus Protocol and High-Efficiency Heating Function

원래 장소:

중국

브랜드 이름:

KACISE

인증:

모델 번호:

KQS-CSYT-A

저희와 연락

인용 을 요청 하십시오

Corrosion-Resistant Ultrasonic Environmental Monitor with RS485 Modbus Protocol and High-Efficiency Heating Function

제품 세부 정보

풍속 범위:

0-70m/초

측정 된 매개 변수:

풍속, 풍향, 온도, 습도, 기압, 나침반, GPS(옵션)

정확성:

풍속: ±(0.5+0.02rdg) m/s; 풍향: ±3°; 온도: ±0.3°C

보호:

부식 방지, 염수 분무 방지, 완전 밀봉 구조

애플리케이션:

항구, 섬, 선박, 해양 석유 시추 플랫폼

신호 출력:

표준 Modbus 프로토콜을 갖춘 RS485

지불 및 배송 조건

최소 주문 수량

1개

포장 세부 사항

각 단위에는 개별 상자가 있으며, 모든 상자는 표준 패키지로 포장되거나 고객 요청에 따라 포장됩니다.

배달 시간

5-8 근무일

지불 조건

L/C,D/A,D/P,T/T,웨스턴 유니온,MoneyGram

공급 능력

양도할 수 있는 주 당 1000개 조각/조각

KQS-ZSYT Fully Automatic Direct-Diffuse Integrated Radiation Monitoring Instrument with High Accuracy Dual Tracking Global Applicability and Multiple Communication Options

가장 좋은 가격 을 구하라

KQZ-GF Photovoltaic Weather Station with Meteorological-Grade Sensors, Fully Waterproof Design, and Customizable Mounting Pole

가장 좋은 가격 을 구하라

KQZ-BX Portable Weather Station with Fully Waterproof Design, Built-in Battery, and Foldable/Telescopic Structure

가장 좋은 가격 을 구하라

KQS-GTM 튜버형 다층 토양 습도 모니터링 기기, FDR 기술로 다층 모니터링 (10/20/30/40cm) 및 태양광

가장 좋은 가격 을 구하라

저희와 연락

지금 연락하세요

제품 설명

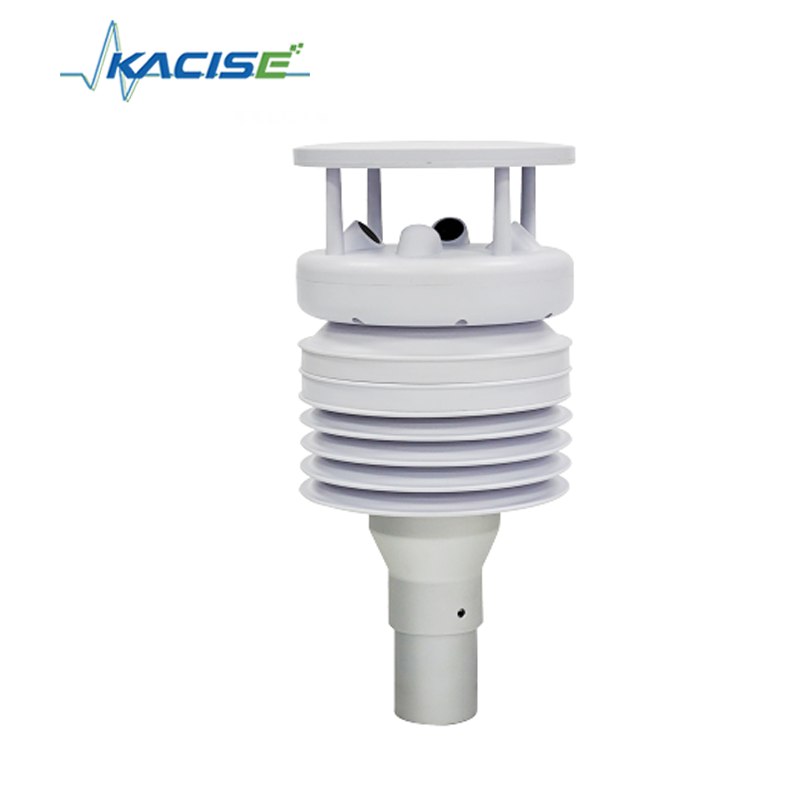

KQS-CSYT-A Corrosion-Resistant Ultrasonic Environmental Monitor

The KQS-CSYT-A corrosion-resistant ultrasonic environmental monitor is a meteorological environmental monitoring instrument specifically designed for marine environments or highly corrosive gas environments. Compared with traditional ultrasonic environmental monitors, it features specially selected corrosion-resistant ultrasonic transducers and a specialized structural design that enhances corrosion resistance and sensor probe replaceability.

Product Features

Designed for harsh marine environments; temperature, humidity, and pressure sensors use polymer membranes to extend service life
Easy maintenance: when the temperature/humidity probe reaches end of life, it can be replaced directly without returning the entire unit for repair
Advanced filtering algorithms with special compensation for rain and fog conditions
Uses high-quality 200 kHz ultrasonic transducers for more accurate and stable wind measurement
Salt-spray resistant probes with fully sealed structure, tested to national standards; suitable for coastal and port environments
RS485 output with standard Modbus protocol for easy system integration
Modular and highly integrated design
Low power consumption
Optional heating function, electronic compass, and GPS support

Technical Parameters

Environmental Parameter (Optional)	Range	Accuracy	Resolution	Power Consumption
Wind speed	0-70 m/s	Start wind speed ≤ 0.8 m/s, ±(0.5 + 0.02rdg) m/s	0.01 m/s	0.1 W
Wind direction	0-360°	±3°	1°	--
Air temperature	-40-80°C	±0.3°C	0.1°C	1 mW
Air humidity	0-100% RH	±5% RH	0.1% RH	1 mW
Atmospheric pressure	300-1100 hPa	±1 hPa (at 25°C)	0.1 hPa	0.1 mW
Electronic compass	0-360°	±5°	1°	100 mW
GPS (longitude)	-180° to 180°	≤10 m	0.1 s	--
GPS (latitude)	-90° to 90°	≤10 m	0.1 s	--
GPS (altitude)	-3276.7 to 3276.7 m	≤3 m	0.1 m	--

Total Power Consumption: Total power = power of selected sensors + base board power; base board power is 300 mW.

Dimensions
