Name: KQS-WSM Mini Integrated Weather Station with 5-in-1 Sensor IP64 Protection and Low Power Consumption
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KQS-WSM
Price: 5,000.00 USD
Availability: InStock

집 > 상품 > Environmental Monitoring >

KQS-WSM Mini Integrated Weather Station with 5-in-1 Sensor IP64 Protection and Low Power Consumption

원래 장소:

중국

브랜드 이름:

KunQuan

인증:

모델 번호:

KQS-WSM

저희와 연락

인용 을 요청 하십시오

KQS-WSM Mini Integrated Weather Station with 5-in-1 Sensor IP64 Protection and Low Power Consumption

제품 세부 정보

센서 유형:

5-in-1 통합(바람, 온도, 습도, 기압)

무게:

240g

치수:

높이 ~17cm, 최대 직경 ~10cm

전력 소비:

총 150mW 미만

보호 등급:

IP64

의사소통:

RS485/RS232/TTL(모드버스-RTU)

지불 및 배송 조건

최소 주문 수량

1개

포장 세부 사항

각 장치에는 개별 상자가 있으며 모든 상자에는 표준 패키지에 포장되거나 고객 요청이 가능합니다.

배달 시간

5-8 근무일

지불 조건

L/C,D/A,D/P,T/T,웨스턴 유니온,MoneyGram

공급 능력

양도할 수 있는 주 당 1000개 조각/조각

KQS-ZSYT Fully Automatic Direct-Diffuse Integrated Radiation Monitoring Instrument with High Accuracy Dual Tracking Global Applicability and Multiple Communication Options

가장 좋은 가격 을 구하라

KQZ-GF Photovoltaic Weather Station with Meteorological-Grade Sensors, Fully Waterproof Design, and Customizable Mounting Pole

가장 좋은 가격 을 구하라

KQZ-BX Portable Weather Station with Fully Waterproof Design, Built-in Battery, and Foldable/Telescopic Structure

가장 좋은 가격 을 구하라

KQS-GTM Tubular Multi-layer Soil Moisture Monitoring Instrument with FDR Technology for Multi-layer Monitoring (10/20/30/40 cm) and Solar Power

가장 좋은 가격 을 구하라

저희와 연락

지금 연락하세요

제품 설명

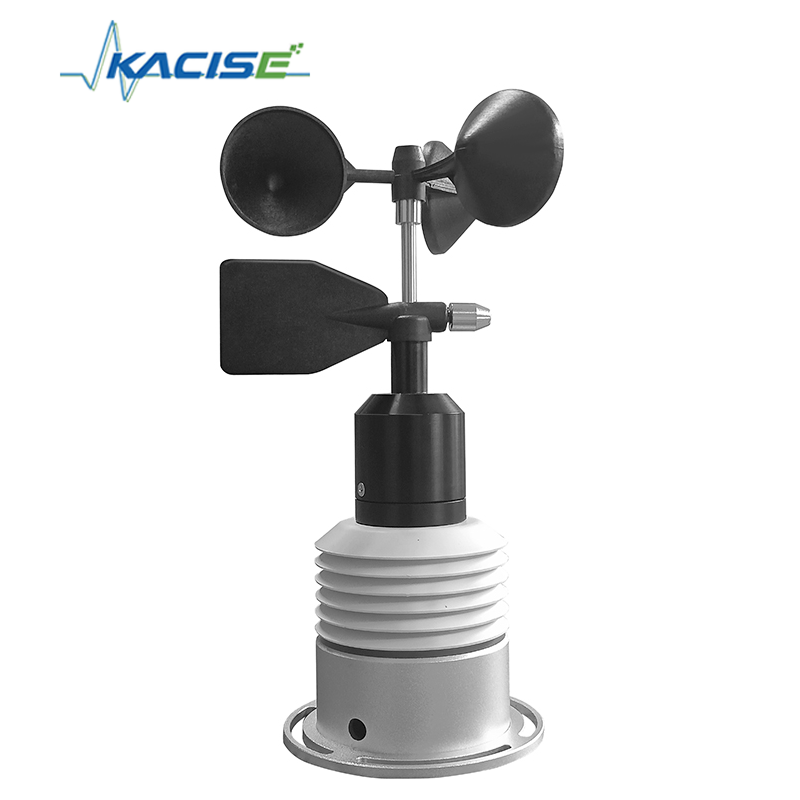

KQS-WSM Mini Integrated Weather Station

KQS-WSM Mini Integrated Weather Station

The KQS-WSM mini integrated weather station is a compact, highly integrated environmental monitoring sensor. Compared with traditional all-in-one environmental sensors, it features a smaller design while maintaining powerful functionality. It can quickly and accurately measure five meteorological parameters: wind speed, wind direction, air temperature, humidity, and atmospheric pressure.

It is widely used for environmental monitoring in agriculture, meteorology, forestry, power systems, chemical plants, ports, railways, and highways.

Technical Parameters

Measurement Item (Optional)	Range	Accuracy	Resolution	Power Consumption
Wind speed	0-45 m/s	Start wind speed ≤ 0.8 m/s, ±(0.5 + 0.02V) m/s	0.1 m/s	40 mW
Wind direction	0-359°	±3°	1°	--
Air temperature	-40-80°C	±0.3°C	0.1°C	1 mW
Air humidity	0-100% RH	±5% RH	0.1% RH	--
Atmospheric pressure	300-1100 hPa	±0.5 hPa (25°C)	0.1 hPa	0.1 mW

Total sensor power consumption: <150 mW

Power supply: DC 5V / DC 9-30V / Others optional

Communication: RS485 (Modbus-RTU) / RS232 (Modbus-RTU) / TTL (Modbus-RTU)

Cable length: Standard 2 m

Weight: 240 g

Operating environment: 0-100% RH, -40°C to +60°C

Protection rating: IP64

Product Features

Integrated design enabling simultaneous monitoring of wind speed, wind direction, temperature, humidity, and atmospheric pressure
Measurement elements can be optionally configured as 2-parameter, 4-parameter, or 5-parameter combinations based on requirements
Compact and lightweight design: height approx. 17 cm, maximum diameter approx. 10 cm, weight under 0.25 kg, easy to install
Advanced filtering algorithm with special compensation for rain and fog conditions, ensuring stable and consistent data output
Each unit is calibrated before leaving the factory using wind tunnel and high/low temperature calibration chambers, ensuring compliance with national standards
Strong environmental adaptability, tested under high/low temperature, waterproof, and salt spray conditions

Dimensions
