Name: Digital COD Sensor with 0-500mg/L and 0-1500mg/L Range ±5%FS Accuracy for Water Quality Monitoring
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KWS-190
Price: 5,000.00 USD
Availability: InStock

집 > 상품 > 수질 감지 센서 >

Digital COD Sensor with 0-500mg/L and 0-1500mg/L Range ±5%FS Accuracy for Water Quality Monitoring

0-500mg/L Range COD Sensor

0-1500mg/L Range Water Quality Sensor

±5%FS Accuracy Digital COD Sensor

원래 장소:

중국

브랜드 이름:

kacise

인증:

모델 번호:

KWS-190

저희와 연락

인용 을 요청 하십시오

Digital COD Sensor with 0-500mg/L and 0-1500mg/L Range ±5%FS Accuracy for Water Quality Monitoring

제품 세부 정보

무게:

1kg(케이블 제외)

측정 범위:

0-500mg/L; 0-1500mg/L

정확성:

±5%FS(0-500mg/L); ±10%FS(500-1500mg/L)

해결:

0.1mg/L; 0.1NTU

전원공급장치:

12~24VDC

강조하다:

0-500mg/L Range COD Sensor

0-1500mg/L Range Water Quality Sensor

±5%FS Accuracy Digital COD Sensor

지불 및 배송 조건

최소 주문 수량

1개

포장 세부 사항

각 장치에는 개별 상자가 있으며 모든 상자에는 표준 패키지에 포장되거나 고객 요청이 가능합니다.

배달 시간

5-8 근무일

지불 조건

MoneyGram, Western Union, T/T, D/P, D/A, L/C.

공급 능력

주당 1000 조각/조각 협상 가능

KWS-790 Digital pH Sensor with 0.00–14.00 pH Measuring Range ±0.02 pH Accuracy and 0–99.9 ℃ Temperature Compensation

가장 좋은 가격 을 구하라

KMPW520 Multi-Parameter Water Quality Analyzer with 7 Inch Touch Screen Display 6-Channel Relay Control and 2-Channel 4-20mA Output

가장 좋은 가격 을 구하라

TDLAS302 Laser Methane Sensor with 0.1 ppm Resolution and 0–1000 ppm Measurement Range for High Accuracy Gas Analysis

가장 좋은 가격 을 구하라

0.00-20.00mg/L 측정 범위, ±2%F.S. 정확도, 0.01mg/L 분해능을 갖춘 벽걸이형 온라인 광학식 용존 산소(DO) 측정기

가장 좋은 가격 을 구하라

저희와 연락

86--17719566736

지금 연락하세요

제품 설명

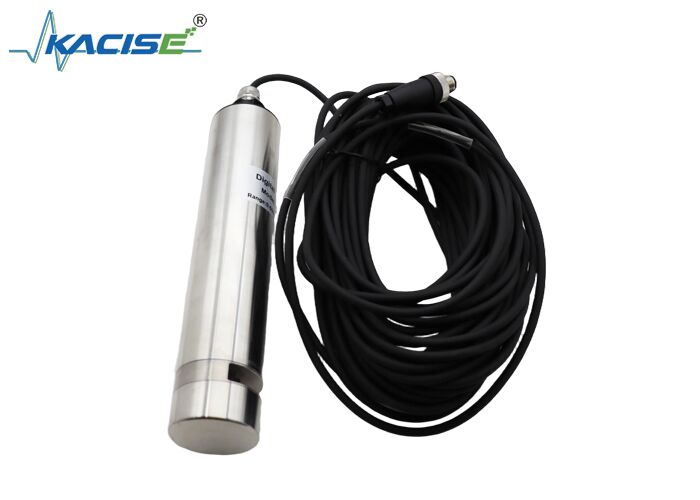

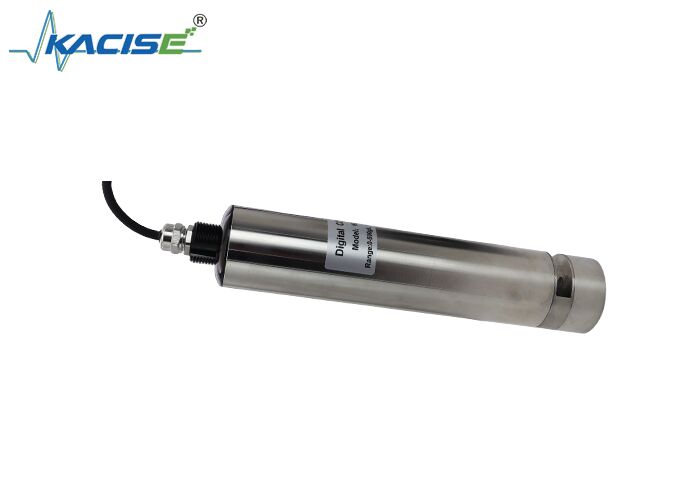

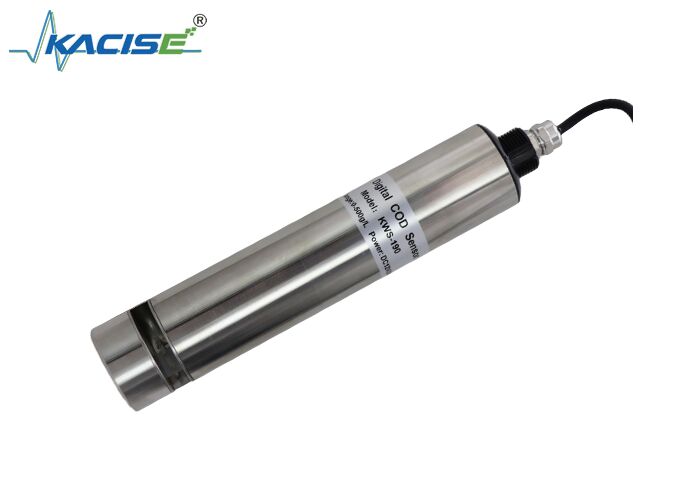

KWS-190 Water Digital COD Sensor

Product Introduction

The UV Method COD Digital Sensor is a digital sensor developed for real-time online monitoring of water COD (Chemical Oxygen Demand). It measures UV light absorption by organic matter in water to determine COD values, with automatic turbidity compensation to eliminate interference from suspended solids.

Main Features

Stainless steel housing with high strength and corrosion resistance
Reagent-free operation for eco-friendly, pollution-free monitoring
Automatic turbidity compensation function
Built-in automatic cleaning to reduce maintenance requirements
Long service life with low operational costs
Direct RS485 interface connectivity for integration with computers, PLCs, and IoT systems
Configurable settings via RS485: slave address, baud rate, calibration, and factory reset
Multi-point calibration support (up to 5 points)

Technical Specifications

Parameter	Specification
Measuring Range	0-500mg/L or 0-1500mg/L (customizable)
Customizable Ranges	COD (0-500mg/L): TOC 0-200mg/L; BOD 0-300mg/L COD (0-1500mg/L): TOC 0-600mg/L; BOD 0-900mg/L
Resolution	0.1mg/L; 0.1NTU
Accuracy	±5%FS (0-500mg/L); ±10%FS (500-1500mg/L)
Turbidity Compensation	0-1000NTU
Interface	RS485 with MODBUS protocol support
Operating Conditions	Ambient Temperature 0-60℃; Water Pressure < 0.1MPa
Power Supply	12-24VDC
Cable	5M standard (customizable length available)
Protection Rating	IP68
Weight	1kg (without cable)

All specifications are subject to change without notice. Contact us for custom configurations or additional technical details.
