브랜드 이름:
Yokogawa
모델 번호:
DM8
Since 1967, Yokogawa's VD6 vibration-type liquid density analyzer has set the standard for online density measurement in process automation. As density is a fundamental physical quantity critical to industrial processes, the VD6 has earned widespread recognition for its exceptional stability and high sensitivity.

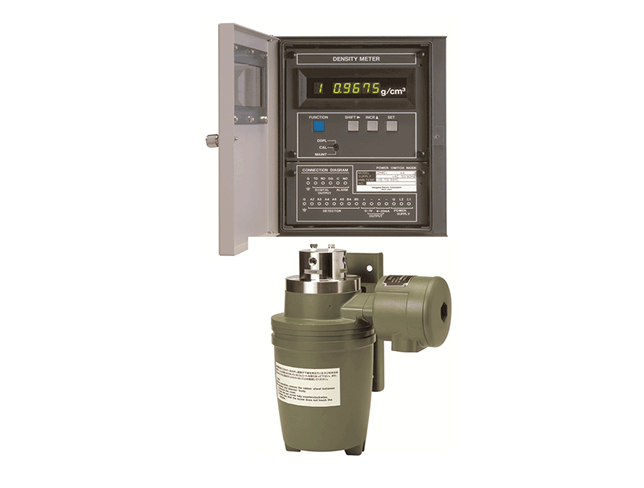

The advanced DM8 vibration-type liquid density analyzer builds upon this legacy, incorporating modern computer technology and multiple sensor techniques. Its microprocessor-based converter directly transforms sensor frequency signals into precise density readings, featuring:
The DM8 analyzer measures liquid density from 0 to 2.0 g/cm³ with outstanding precision, unaffected by flow rate or viscosity. Available configurations include general-purpose, sanitary, and explosion-proof sensors.
| Measurement Object | Liquid density |
|---|---|
| Measurement Principle | Vibration density measurement |
| Measurement Range | 0.5 to 2.0 g/cm³ |
| Operating Conditions |
Liquid temperature: -10 to 100℃ Liquid pressure: ≤2 MPa G Withstandable pressure: 4.9 MPa G |
| Output Signals |
Analog: 4-20 mA DC (≤550Ω) or 0-1V DC (≥250kΩ) Digital: RS-232C |
| Performance |
Linearity: ±0.5% of span (≤0.2 g/cm³) Repeatability: 5*10⁻⁴ g/cm³ (digital), 1% of span (analog) |
| Physical Specifications |
Converter weight: 7.5 kg Detector weight: 12.0 kg Enclosure: Dust and rain proof |
| Power Requirements | 90-132V AC or 180-264V AC, 50/60Hz |
