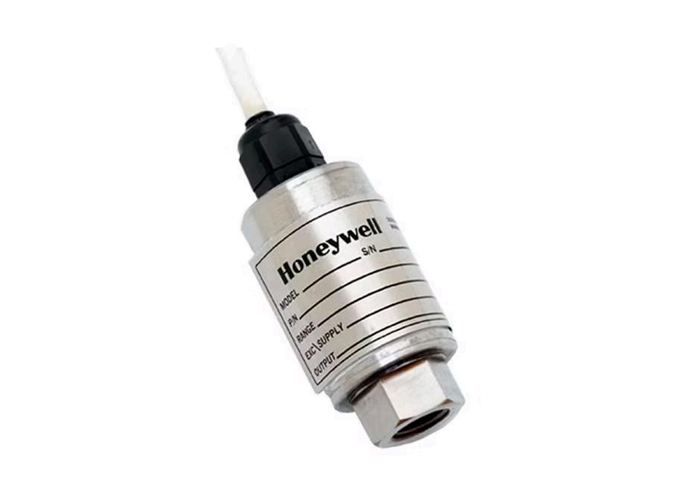

Model LM Industrial Gage Pressure Transducer with 1 psig to 10,000 psig Range ±0.50% FS BFSL Accuracy and 50% Over Capacity Safe Overload

1 psig to 10000 psig Pressure Transducer

±0.50% FS BFSL Gage Pressure Sensor

50% Over Capacity Industrial Pressure Sensor

브랜드 이름:

Honeywell

모델 번호:

LM형

저희와 연락

인용 을 요청 하십시오

Model LM Industrial Gage Pressure Transducer with 1 psig to 10,000 psig Range ±0.50% FS BFSL Accuracy and 50% Over Capacity Safe Overload

제품 세부 정보

정확성:

±0.5% 풀 스케일

온도, 작동:

-54°C~121°C[-65°F~250°F]

온도 효과, 범위:

0.02% 판독값/°F

온도 효과, 0:

0.01% 풀 스케일/°F

온도, 보상됨:

16°C~71°C[60°F~160°F]

강조하다:

1 psig to 10000 psig Pressure Transducer

±0.50% FS BFSL Gage Pressure Sensor

50% Over Capacity Industrial Pressure Sensor

지불 및 배송 조건

최소 주문 수량

1pcs

포장 세부 사항

각 장치에는 개별 상자가 있으며 모든 상자에는 표준 패키지에 포장되거나 고객 요청이 가능합니다.

배달 시간

5-8 일

지불 조건

L/C, D/A, D/P, T/T, Western Union, MoneyGram

공급 능력

주당 1000 조각/조각 협상 가능

Honeywell 1CPS Series Single head cable pull. UL, CSA, CE, SIL3. IP67. NEMA 1, 4, 12, 13. Silver & gold contacts.

가장 좋은 가격 을 구하라

GK Series Key Operated Safety Interlock Switch with IP67 NEMA 1 4 12 13 Rating and -25 °C to 85 °C Operating Range

가장 좋은 가격 을 구하라

GKE Series Safety Key-Operated Switch with IEC 20 mm Mounting IP66/67 Rated and NEMA 1 4X 12 13 Compliance

가장 좋은 가격 을 구하라

Honeywell GKM Series Compact SIL3 Capable Key-Operated Safety Interlock Switch with IP66/IP67 Rating and NEMA 1, 12, 13 Compliance

가장 좋은 가격 을 구하라

저희와 연락

86--17719566736

지금 연락하세요

제품 설명

Model LM Industrial Gage Pressure Transducers

1 psig to 10,000 psig range with mV/V output and ±0.50% FS BFSL accuracy.

Overview

The Model LM pressure transducer is a cost-efficient, general-purpose gage-only device. Each unit is constructed with durable materials based on pressure range:

HA C276/316 Stainless Steel for ranges ≤100 psi
17-4 PH Stainless Steel for ranges 100-1500 psi
15-5 PH Stainless Steel for ranges ≥2000 psi

Designed for dry, rugged environments, it safely accepts both gas and liquid pressure overloads up to 50% over capacity.

Key Features

1 psig to 10,000 psig range
Integral cable connection
1/4-18 NPT female pressure port
mV/V output
0.5% accuracy

Industry Applications

Energy
Manufacturing
Utilities

Performance Specifications

Accuracy

±0.5% full scale

Environmental Specifications

Temperature, operating	-54°C to 121°C [-65°F to 250°F]
Temperature, compensated	16°C to 71°C [60°F to 160°F]
Temperature effect, zero	0.01% full scale/°F
Temperature effect, span	0.02% reading/°F

Electrical Specifications

Excitation (calibration)	10 Vdc
Excitation (acceptable)	10 Vdc
Insulation resistance	5000 mOhm @ 50 Vdc
Electrical termination (std)	Cable 0.91 m [3 ft]

Mechanical Specifications

Media	All gases/liquids compatible with wetted parts
Overload, safe	50% over capacity
Pressure port	1/4-18 NPT female
Wetted parts	Stainless steel
Weight	170 g [6 oz]
Case material	Stainless steel

Option Codes

Pressure ranges	1, 2.5, 5, 15, 25, 50, 75, 100, 150, 200, 300, 500, 750, 1000, 1500, 2000, 3000, 5000, 7500, 10000 psig
Temperature compensation	60°F to 160°F
Internal amplifiers	Unamplified, mV/V output
Pressure ports	1/4-18 NPT female
Electrical termination	Cable 0.91 m [3 ft]
Special calibration	10 point (5 up/5 down) @ 20% increments 20 point (10 up/10 down) @ 10% increments

Wiring Codes

Cable	Unamplified
Red	(+) Excitation
Black	(-) Excitation
Green	(-) Output
White	(+) Output

Part Numbers

Part Number	Description
060-2345-08	BP211CR, 1A, 2U, 5A, 6FA:MODEL LM, 500 PSI
060-2345-10	BP211CV, 1A, 2U, 5A, 6FA:MODEL LM, 1,000 PSI
060-2345-12	BP211DN, 1A, 2U, 5A, 6FA:MODEL LM, 3,000 PSI
060-2345-12-06	MODEL LM, 3,000 PSIG
060-2345-14	BP211DR, 1A, 2U, 5A, 6FA:MODEL LM, 5,000 PSI
060-2345-15-03	BP211DT, 1A, 2U, 5A, 6FA, 9A:MODEL LM, 7,499
060-2345-15G	BP211DT, 1A, 2U, 5A, 6FA:MODEL LM, 7,500 PSI
060-2345-16	BP211DV, 1A, 2U, 5A, 6FA:MODEL LM, 10,001
060-3315-02	BP211BR, 1A, 2U, 5A, 6A:MODEL LM, 100 PSI
060-R665-01	BP211DR, 1A, 2U, 5F, 6FA:MODEL LM 5,000 PSIG
