Name: Honeywell Model A-105 Pressure Transducer with 100 psi to 15,000 psi Range 0.50% Full-Scale Accuracy and 17-4 PH Stainless Steel Construction
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: 모델 A-105
Price: 152.00 USD
Availability: InStock

집 > 상품 > 정밀 압력 센서 >

Honeywell Model A-105 Pressure Transducer with 100 psi to 15,000 psi Range 0.50% Full-Scale Accuracy and 17-4 PH Stainless Steel Construction

100 psi to 15

000 psi Pressure Transducer

0.50% Full-Scale Accuracy Pressure Transducer

브랜드 이름:

Honeywell

모델 번호:

모델 A-105

저희와 연락

인용 을 요청 하십시오

Honeywell Model A-105 Pressure Transducer with 100 psi to 15,000 psi Range 0.50% Full-Scale Accuracy and 17-4 PH Stainless Steel Construction

제품 세부 정보

강조하다:

100 psi to 15

000 psi Pressure Transducer

0.50% Full-Scale Accuracy Pressure Transducer

지불 및 배송 조건

최소 주문 수량

1pcs

포장 세부 사항

각 장치에는 개별 상자가 있으며 모든 상자에는 표준 패키지에 포장되거나 고객 요청이 가능합니다.

배달 시간

5-8 일

지불 조건

L/C, D/A, D/P, T/T, Western Union, MoneyGram

공급 능력

주당 1000 조각/조각 협상 가능

Honeywell 434 435 437 Series Wing Union Hammer Union Pressure Transducer with Weco® 1502/2002/2202 Compatibility 4-20mA Output and 9-28Vdc Supply Voltage

가장 좋은 가격 을 구하라

Honeywell Model DS Digital Pressure Transducer with 0.1% Accuracy 1200 Hz Analog Response and 380 Readings/Second

가장 좋은 가격 을 구하라

Honeywell Model Z Pressure Transducer with 0.25% Accuracy 0.5 to 60,000 psig/a Range and Stainless Steel Construction

가장 좋은 가격 을 구하라

Honeywell Model A-105 Pressure Transducer with 100 psi to 15,000 psi Range 0.50% Full-Scale Accuracy and 17-4 PH Stainless Steel Construction

가장 좋은 가격 을 구하라

저희와 연락

86--17719566736

지금 연락하세요

제품 설명

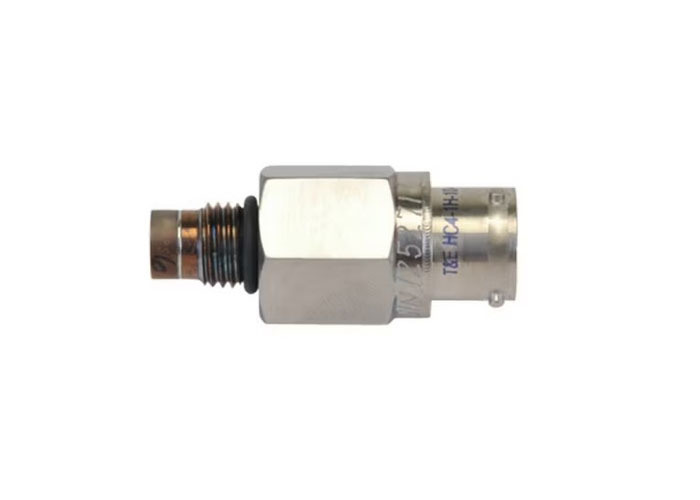

Honeywell Model A-105 PRESSURE TRANSDUCERS

Flush diaphragm pressure transducers. 100 psi to 15,000 psi. 0.50% full-scale accuracy.

The Model A-105 gauge pressure transducers feature a unitized 17-4 PH stainless steel, wetted diaphragm construction. This design combines a thin diaphragm with heavy sidewalls made from a single piece of stainless steel, offering both ruggedness and sensitivity for low pressure measurement.

Available in pressure ranges from 100 psig to 15,000 psig, these transducers are suitable for corrosive fluid environments. The Model A-105 features welded electrical connectors integrated into the transducer body, making it ideal for applications involving rough handling or requiring an all-welded, stainless steel transducer. All units incorporate four active bonded strain gauges arranged in a Wheatstone-bridge configuration.

Key Features

100 psig to 15000 psig range
Flush mount design
No dead volume
Miniature footprint
Stainless steel construction
CE approved

Industry Applications

Industry
Energy
Life Sciences
Manufacturing
