Name: Honeywell Model 811FM Two-wire Pressure Transducer with 4 mA to 20 mA Output and 0.25% Accuracy
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: 모델 811fm
Price: 152.00 USD
Availability: InStock

집 > 상품 > 정밀 압력 센서 >

Honeywell Model 811FM Two-wire Pressure Transducer with 4 mA to 20 mA Output and 0.25% Accuracy

Two-wire Pressure Transducer

4 mA to 20 mA output Pressure Transducer

0.25% accuracy Pressure Transducer

브랜드 이름:

Honeywell

모델 번호:

모델 811fm

저희와 연락

인용 을 요청 하십시오

Honeywell Model 811FM Two-wire Pressure Transducer with 4 mA to 20 mA Output and 0.25% Accuracy

제품 세부 정보

강조하다:

Two-wire Pressure Transducer

4 mA to 20 mA output Pressure Transducer

0.25% accuracy Pressure Transducer

지불 및 배송 조건

최소 주문 수량

1pcs

포장 세부 사항

각 장치에는 개별 상자가 있으며 모든 상자에는 표준 패키지에 포장되거나 고객 요청이 가능합니다.

배달 시간

5-8 일

지불 조건

L/C, D/A, T/T, D/P, Western Union, MoneyGram

공급 능력

주당 1000 조각/조각 협상 가능

Honeywell 434 435 437 Series Wing Union Hammer Union Pressure Transducer with Weco® 1502/2002/2202 Compatibility 4-20mA Output and 9-28Vdc Supply Voltage

가장 좋은 가격 을 구하라

Honeywell Model DS Digital Pressure Transducer with 0.1% Accuracy 1200 Hz Analog Response and 380 Readings/Second

가장 좋은 가격 을 구하라

Honeywell Model Z Pressure Transducer with 0.25% Accuracy 0.5 to 60,000 psig/a Range and Stainless Steel Construction

가장 좋은 가격 을 구하라

Honeywell Model A-105 Pressure Transducer with 100 psi to 15,000 psi Range 0.50% Full-Scale Accuracy and 17-4 PH Stainless Steel Construction

가장 좋은 가격 을 구하라

저희와 연락

86--17719566736

지금 연락하세요

제품 설명

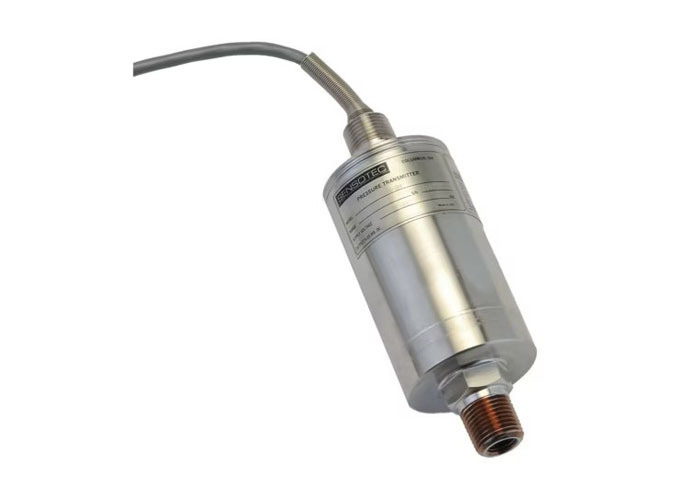

Honeywell Model 811FM PRESSURE TRANSDUCERS

Two-wire. Gage/absolute pressure transmitter. psig/a to 10,000 psig/a. 4 mA to 20 mA output. 0.25% accuracy. True gage design hermetic. Honeywell Model 811FM Two-wire Pressure Transducer with 4 mA to 20 mA Output and 0.25% Accuracy 0

The Model 811FM is a two-wire transmitter featuring welded stainless steel diaphragms suitable for use with liquid, gas or corrosive vapors. Manufactured from 17-4 PH stainless steel wetted material for ranges up to 2,000 psi or 15-5 PH stainless steel for ranges 2,000 psi and greater. This model features a hermetically-sealed, stainless steel case requiring no adjustment. These transducers are corrosion and shock resistant with reverse polarity protection. The 4 mA to 20 mA output enables long cable runs with high signal-to-noise ratio. Includes dual pipe thread pressure fitting for easy bulkhead mounting.

Key Features

2 psig/a to 10000 psig/a range
Bulkhead mounting
All welded, stainless steel, "true gage or absolute" design
Explosion proof
0.25% accuracy

Specifications

Industry	Energy
Manufacturing	Utilities
