Name: KQS-FX1 Wind Direction Sensor with 360° Full Direction Low Starting Wind Speed ≤ 0.8 m/s and Wide Voltage Power Supply 5V or 9-30V DC
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KQS-FX1
Price: 5,000.00 USD
Availability: InStock

집 > 상품 > Environmental Monitoring >

KQS-FX1 Wind Direction Sensor with 360° Full Direction Low Starting Wind Speed ≤ 0.8 m/s and Wide Voltage Power Supply 5V or 9-30V DC

원래 장소:

중국

브랜드 이름:

KACISE

인증:

모델 번호:

KQS-FX1

저희와 연락

인용 을 요청 하십시오

KQS-FX1 Wind Direction Sensor with 360° Full Direction Low Starting Wind Speed ≤ 0.8 m/s and Wide Voltage Power Supply 5V or 9-30V DC

제품 세부 정보

측정 범위:

0-359° 전체 방향

시작 풍속:

≤ 0.8m/s

정확성:

± 3 °

해결:

1 °

전원공급장치:

5V 또는 9-30V DC 넓은 전압 옵션

신호 출력:

4-20mA / 0-20mA, 0-2.5V / 0-5V / 1-5V, RS485 / RS232 옵션

지불 및 배송 조건

최소 주문 수량

1개

포장 세부 사항

각 단위에는 개별 상자가 있으며, 모든 상자는 표준 패키지로 포장되거나 고객 요청에 따라 포장됩니다.

배달 시간

5-8 근무일

지불 조건

L/C,D/A,D/P,T/T,웨스턴 유니온,MoneyGram

공급 능력

양도할 수 있는 주 당 1000개 조각/조각

KQS-ZSYT Fully Automatic Direct-Diffuse Integrated Radiation Monitoring Instrument with High Accuracy Dual Tracking Global Applicability and Multiple Communication Options

가장 좋은 가격 을 구하라

KQZ-GF Photovoltaic Weather Station with Meteorological-Grade Sensors, Fully Waterproof Design, and Customizable Mounting Pole

가장 좋은 가격 을 구하라

KQZ-BX Portable Weather Station with Fully Waterproof Design, Built-in Battery, and Foldable/Telescopic Structure

가장 좋은 가격 을 구하라

KQS-GTM Tubular Multi-layer Soil Moisture Monitoring Instrument with FDR Technology for Multi-layer Monitoring (10/20/30/40 cm) and Solar Power

가장 좋은 가격 을 구하라

저희와 연락

지금 연락하세요

제품 설명

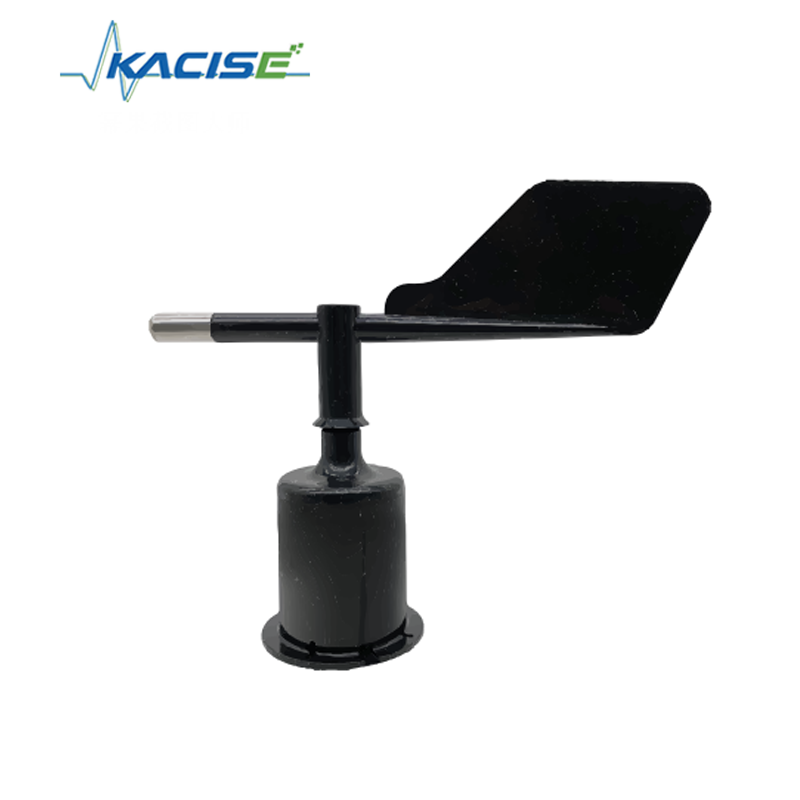

KQS-FX1 Wind Direction Sensor

Wind Direction Sensor KQS-FX1

Product Introduction

The KQS-FX1 is a full 360° wind direction sensor that uses a precision angle sensing element internally. The KQS-FX1-8 eight-direction wind sensor adopts a 4-optocoupler system to determine wind direction. It uses a low-inertia ABS wind vane to ensure quick response to wind direction changes and good dynamic performance. This product features excellent linearity, high accuracy, no dead zone, strong lightning resistance, easy observation, and stable and reliable operation. It is widely used in meteorology, oceanography, environmental monitoring, airports, ports, laboratories, agriculture and industry, transportation, and other fields.

Product Features

Independently patented design; each sensor is wind-tunnel calibrated
Uses high-quality bearings, low starting wind speed, and stable performance
Easy installation; supports both bottom and side cable outlet configurations

Technical Parameters

Item	Specification
Range	0-45 m/s (current/voltage output) 0-70 m/s (pulse, RS485, RS232 output)
Starting wind speed	≤ 0.8 m/s
Accuracy	±(0.5 + 0.02V) m/s (V = real-time wind speed value)
Resolution	0.1 m/s
Power consumption	0.48 W
Power supply	5 V or 9-30 V wide-voltage optional
Net weight	125 g
Signal output	Current: 4-20 mA/0-20 mA Voltage: 0-2.5 V / 0-5 V /1-5 V Serial port: RS485 / RS232 optional
Cable length	Standard: 0.8 m Others:

Dimension
