UM12 Ultrasonic distance sensors

UM12 ultrasonic distance sensor

water quality distance sensor

ultrasonic sensor with warranty

브랜드 이름:

SICK

모델 번호:

UM12

저희와 연락

인용 을 요청 하십시오

제품 세부 정보

작동 범위::

20mm ... 240mm(유형에 따라 다름)

제한 범위::

250mm / 350mm(유형에 따라 다름)

반복성:

± 0.15%

해결:

≥ 0.069mm

전환 주파수:

30Hz / 25Hz(유형에 따라 다름)

출력 시간:

8ms ... 10ms(유형에 따라 다름)

강조하다:

UM12 ultrasonic distance sensor

water quality distance sensor

ultrasonic sensor with warranty

지불 및 배송 조건

최소 주문 수량

1개

포장 세부 사항

각 장치에는 개별 상자가 있으며 모든 상자에는 표준 패키지에 포장되거나 고객 요청이 가능합니다.

배달 시간

5-8 근무일

지불 조건

L/C,D/A,D/P,T/T,웨스턴 유니온,MoneyGram

공급 능력

주당 1000 조각/조각 협상 가능

UC12 Ultrasonic distance sensors

가장 좋은 가격 을 구하라

UC30 Ultrasonic distance sensors

가장 좋은 가격 을 구하라

UD18 Ultrasonic distance sensors

가장 좋은 가격 을 구하라

UM12 Ultrasonic distance sensors

가장 좋은 가격 을 구하라

저희와 연락

지금 연락하세요

제품 설명

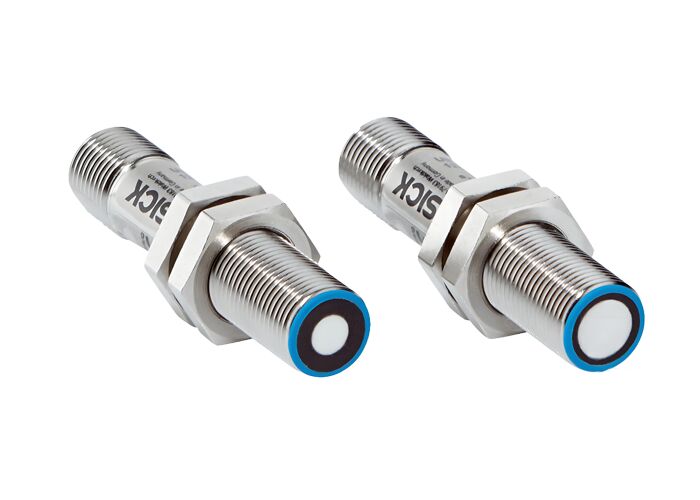

UM12 Ultrasonic Distance Sensors

The UM12 ultrasonic distance sensors combine compact dimensions with rugged metal housing construction. Available with various output signals including IO-Link interface, these sensors provide maximum flexibility in tight installation spaces.

Key Advantages

Compact housing dimensions for straightforward machine integration
Proven M12 housing design ensures compatibility with other technologies
Rugged, one-piece metal housing for maximum plant availability
Teach-in via cable and IO-Link prevents unintentional sensor adjustment
Integrated temperature compensation ensures high measurement accuracy
Immunity to external factors enables reliable operation in dirty, dusty, humid, and foggy conditions

Product Features

Short and rugged M12 metal housing
Wide variety of interfaces and IO-Link compatibility
Optimal background suppression
Integrated temperature compensation
Detection, measurement, or positioning with ultrasound technology
Reliable performance regardless of material color, transparency, gloss, or ambient light

Technical Specifications

Parameter	Details
Measuring Range	Operating range: 20 mm ... 240 mm (depending on type) Limiting range: 250 mm / 350 mm (depending on type)
Resolution	≥ 0.069 mm
Repeatability	± 0.15 %
Response Time	24 ms ... 30 ms
Output Time	8 ms ... 10 ms (depending on type)
Switching Frequency	30 Hz / 25 Hz (depending on type)
Analog Output	4 mA ... 20 mA, ≤ 500 Ω / 0 V ... 10 V, ≥ 100,000 Ω
Digital Output	Type: PNP / NPN / push-pull:PNP/NPN (depending on type)
IO-Link	✓, IO-Link V1.1
Enclosure Rating	IP65 / IP67
Sending Axis	Straight
Ambient Temperature	-25 °C ... +70 °C

Model Selection Guide

Product Variant	Part No.	Min. Range	Max. Range	Interface	Digital Output	Analog Output	Measuring Frequency	Switching Frequency	Response Time
UM12-11722B1	6077704	20 mm	150 mm	IO-Link	push-pull: PNP/NPN	-	380 kHz	30 Hz	24 ms
UM12-1172211	6053542	20 mm	150 mm	-	PNP	-	380 kHz	30 Hz	24 ms
UM12-1172271	6053545	20 mm	150 mm	-	-	voltage output	380 kHz	-	24 ms
UM12-11922B1	6077705	40 mm	240 mm	IO-Link	push-pull: PNP/NPN	-	500 kHz	25 Hz	30 ms
UM12-1192261	6053548	40 mm	240 mm	-	-	Current output	500 kHz	-	30 ms
UM12-1192271	6053549	40 mm	240 mm	-	-	voltage output	500 kHz	-	30 ms
UM12-1172251	6053543	20 mm	150 mm	-	NPN	-	380 kHz	30 Hz	24 ms
UM12-1192251	6053547	40 mm	240 mm	-	NPN	-	500 kHz	25 Hz	30 ms
UM12-1192211	6053546	40 mm	240 mm	-	PNP	-	500 kHz	25 Hz	30 ms
UM12-1172261	6053544	20 mm	150 mm	-	-	Current output	380 kHz	-	24 ms
