Name: Proline Prosonic Flow G 300 ultrasonic flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: 프롤린 프로소닉 플로우 G 300
Price: 892.00 USD
Availability: InStock

집 > 상품 > 초음파 유량 측정 기구 >

Proline Prosonic Flow G 300 ultrasonic flowmeter

Prosonic Flow G 300 ultrasonic flowmeter

ultrasonic flow meter with warranty

Proline ultrasonic flowmeter for liquids

원래 장소:

스위스

브랜드 이름:

Endress+Hauser

인증:

모델 번호:

프롤린 프로소닉 플로우 G 300

저희와 연락

인용 을 요청 하십시오

Proline Prosonic Flow G 300 ultrasonic flowmeter

제품 세부 정보

맥스. 프로세스 압력:

0.7~101bara(10.15~1464.88psia)

중간 온도 범위:

-50~150°C(-58~+302°F)

주변 온도 범위:

-40 ~ 60°C(-40 ~ +140°F)

센서 하우징 소재:

스테인레스 스틸, 1.4404(316/316L), 1.4408/1.4409(CF3M)

전송:

코팅된 AlSi10Mg; 1.4409(CF3M) 316L폴리카보네이트와 유사

보호 정도:

컴팩트 버전: IP66/67, 유형 4X 인클로저. 옵션: 외부 WLAN 안테나: IP67

강조하다:

Prosonic Flow G 300 ultrasonic flowmeter

ultrasonic flow meter with warranty

Proline ultrasonic flowmeter for liquids

지불 및 배송 조건

최소 주문 수량

1개

포장 세부 사항

각 장치에는 개별 상자가 있으며 모든 상자에는 표준 패키지에 포장되거나 고객 요청이 가능합니다.

배달 시간

5-8 근무일

지불 조건

L/C,D/A,D/P,T/T,웨스턴 유니온,MoneyGram

공급 능력

주당 1000 조각/조각 협상 가능

Proline Prosonic Flow E 100 ultrasonic flowmeter

가장 좋은 가격 을 구하라

Proline Prosonic Flow G 300 ultrasonic flowmeter

가장 좋은 가격 을 구하라

Proline Prosonic Flow G 500 ultrasonic flowmeter

가장 좋은 가격 을 구하라

Proline Prosonic Flow I 400 ultrasonic flowmeter

가장 좋은 가격 을 구하라

저희와 연락

지금 연락하세요

제품 설명

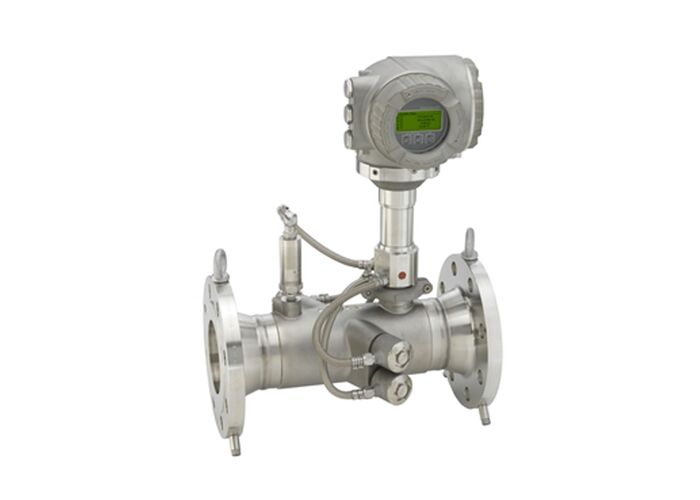

Proline Prosonic Flow G 300 Ultrasonic Flowmeter

The Prosonic Flow G 300 provides reliable flow measurement for a wide range of gas applications, even with wet gas and changing gas properties. Featuring a pressure-rated sensor housing with rupture disc for enhanced safety, this compact transmitter offers exceptional flexibility in operation and system integration.

Key Advantages

Flexible device with user-definable gas mixtures for demanding measuring tasks
Maximum reliability even with humid or wet gas - sensor design insensitive to condensate
High-performance process control with real-time pressure- and temperature-compensated values
Efficient multivariable solution with no pressure loss
Full access to process and diagnostic information with numerous, freely combinable I/Os
Integrated verification through Heartbeat Technology

Technical Specifications

Measurement Performance

Measurement Type	Accuracy	Range
Volume Flow (Standard)	±1.0% o.r. (3-40 m/s) ±2% o.r. (0.3-3 m/s)	0.3 to 40 m/s
Volume Flow (Optional Calibration)	±0.5% o.r. (3-40 m/s) ±1.0% o.r. (0.3-3 m/s)	0.3 to 40 m/s
Sound Velocity	±0.2% o.r.	-

Process Conditions

Parameter	Range
Medium Temperature	-50 to 150°C (-58 to +302°F) -50 to 100°C (-58 to +212°F) with integrated pressure cell
Process Pressure	0.7 to 101 bar a (10.15 to 1464.88 psi a)
Measuring Range (Gas)	0.3 m/s to 40 m/s

Measured Variables

Volume flow, corrected volume flow, mass flow, flow velocity, speed of sound, pressure, temperature, density, dynamic viscosity, energy flow, Wobbe index, methane fraction, calorific value, molar mass

Construction Materials

Component	Material
Measuring Tube	1.4408/1.4409 (CF3M)
Transducer	1.4404 (316, 316L), Titan Grade 2
Sensor Housing	Stainless Steel, 1.4404 (316/316L), 1.4408/1.4409 (CF3M)

Device Features

Sensor Features

Direct measurement of flow, pressure & temperature
Wetted parts: titanium / 316L
Maximum measuring accuracy: 0.5%
Measuring principle unaffected by gas composition

Transmitter Features

Compact dual-compartment housing with up to 3 I/Os
Backlit display with touch control and WLAN access
Remote display available
Freely configurable I/O functionality

Electrical & Communication

Inputs/Outputs

Type	Specifications
Outputs	3 outputs: 4-20 mA HART, 4-20 mA, Pulse/frequency/switch output, Double pulse output, Relay output
Inputs	Status input, 4-20 mA input
Digital Communication	HART, Modbus RS485
Power Supply	24V DC, 100 to 230 V AC

Certifications & Approvals

Hazardous Area: ATEX, IECEx, cCSAus, JPN, EAC, UK Ex, KC

Product Safety: CE, C-tick

Functional Safety: IEC 61508, applicable in safety-relevant applications per IEC 61511

Pressure: PED, CRN

Material: 3.1 material, NACE MR0175/MR0103
