Name: Proline Promass S 300 Coriolis flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: 프롤린 프로매스 S 300
Price: 2,540.00 USD
Availability: InStock

집 > 상품 > 전자장 유속계 >

Proline Promass S 300 Coriolis flowmeter

Proline Promass S 300 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

원래 장소:

스위스

브랜드 이름:

Endress+Hauser

인증:

모델 번호:

프롤린 프로매스 S 300

저희와 연락

인용 을 요청 하십시오

Proline Promass S 300 Coriolis flowmeter

제품 세부 정보

측정 범위:

0 ~ 70,000kg/h(0 ~ 2,570lb/min)

맥스. 프로세스 압력:

PN 40, 클래스 150, 20K

중간 온도 범위:

–50 ~ +150°C(–58 ~ +302°F)

주변 온도 범위:

표준: –40 ~ +60°C(–40 ~ +140°F)

센서 하우징 소재:

센서 하우징 소재

송신기 하우징 소재:

코팅된 AlSi10Mg; 위생적인 트랜스미터 설계를 위한 스테인레스 스틸

강조하다:

Proline Promass S 300 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

지불 및 배송 조건

최소 주문 수량

1개

포장 세부 사항

각 장치에는 개별 상자가 있으며 모든 상자에는 표준 패키지에 포장되거나 고객 요청이 가능합니다.

배달 시간

5-8 근무일

지불 조건

L/C,D/A,D/P,T/T,웨스턴 유니온,MoneyGram

공급 능력

주당 1000 조각/조각 협상 가능

Proline Promass S 300 Coriolis flowmeter

가장 좋은 가격 을 구하라

Proline Promass P 500 Coriolis flowmeter

가장 좋은 가격 을 구하라

Proline Promass Q 300 Coriolis flowmeter

가장 좋은 가격 을 구하라

Proline t-mass F 500 thermal mass flowmeter

가장 좋은 가격 을 구하라

저희와 연락

지금 연락하세요

제품 설명

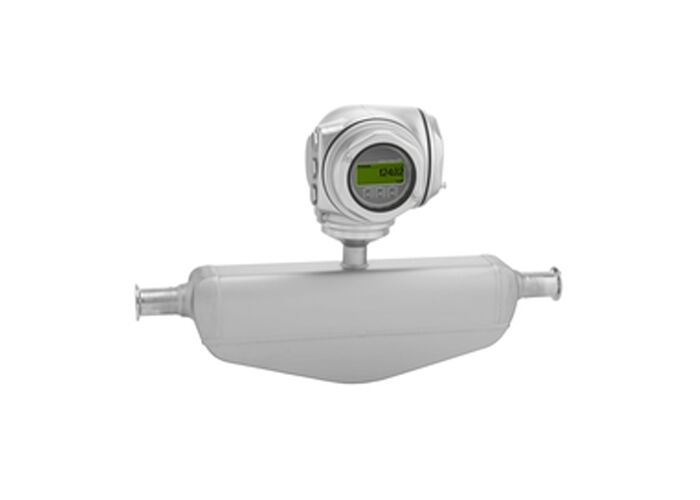

Proline Promass S 300 Coriolis Flowmeter

The Promass S 300 is a high-precision Coriolis flowmeter designed specifically for hygienic applications in the food and beverage industry. Featuring optimal cleanability and a self-drainable single-tube system, it ensures careful fluid treatment while providing exceptional measurement accuracy.

Key Specifications

Measurement Accuracy

Mass flow (liquid): ±0.10%
Volume flow (liquid): ±0.10%
Density (liquid): ±0.0005 g/cm³

Measuring Range

0 to 70,000 kg/h (0 to 2,570 lb/min)

Temperature Range

-50 to +150 °C (-58 to +302 °F)

Max Process Pressure

PN 40, Class 150, 20K

Field of Application

The Promass S is specifically designed for hygienic applications in the food and beverage industry, offering optimal cleanability and process safety. Its compact transmitter provides high flexibility in operation and system integration.

Key Benefits

Increased process safety with easily cleanable, fully self-drainable tube design
Fewer process measuring points through multivariable measurement (flow, density, temperature)
Space-saving installation with no inlet/outlet run requirements
Full access to process and diagnostic information with numerous I/Os and Ethernet
Reduced complexity with freely configurable I/O functionality
Integrated verification through Heartbeat Technology

Technical Features

Sensor Features

Large range of hygienic process connections
3-A and EHEDG compliant
Fast recovery from CIP/SIP processes
Measuring principle operates independently of fluid properties

Transmitter Features

Compact hygienic dual-compartment housing with IP69 rating
Backlit display with touch control and WLAN access
Remote display capability
Up to 3 I/O connections

Detailed Specifications

Nominal Diameter Range	DN 8 to 50 (⅜ to 2")
Wetted Materials	Measuring tube: 1.4435 (316L) Connection: 1.4435 (316L); 1.4404 (316/316L)
Measured Variables	Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration
Ambient Temperature Range	Standard: -40 to +60 °C (-40 to +140 °F) Option: -50 to +60 °C (-58 to +140 °F)
Housing Materials	Sensor: 1.4301 (304), corrosion resistant Transmitter: AlSi10Mg, coated; stainless steel for hygienic design
Degree of Protection	IP66/67, type 4X enclosure, IP69

Inputs & Outputs

Outputs

3 outputs including: 4-20 mA HART, 4-20 mA WirelessHART, pulse/frequency/switch output, relay output

Inputs

Status input, 4-20 mA input

Communication & Power

Digital Communication

HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, MODBUS TCP over Ethernet-APL, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA

Power Supply

DC 24 V, AC 100 to 230 V, AC 100 to 230 V / DC 24 V (non-hazardous area)

Approvals & Certifications

ATEX IECEx cCSAus NEPSI INMETRO EAC UK Ex KC CE 3-A EHEDG cGMP PED CRN

Functional safety according to IEC 61508, applicable in safety-relevant applications per IEC 61511. Calibration performed on accredited facilities (ISO/IEC 17025). Heartbeat Technology complies with ISO 9001:2015 requirements for measurement traceability.
