Proline Promass P 500 Coriolis flowmeter

Proline Promass P 500 Coriolis flowmeter

Proline Promass P 500 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

원래 장소:

스위스

브랜드 이름:

Endress+Hauser

인증:

CE

모델 번호:

프롤린 프로매스 P 500

저희와 연락
인용 을 요청 하십시오
제품 세부 정보
측정변수:
질량유량, 밀도, 온도, 체적유량, 보정된 체적유량, 기준 밀도, 농도
맥스. 측정 오차:
질량 fl±±0.10%밀도(액체): ±0.0005g/cm
측정 범위:
0 ~ 70,000kg/h(0 ~ 2,570lb/min)
맥스. 프로세스 압력:
PN 40, 클래스 150, 20K
중간 온도 범위:
표준: –50 ~ +150°C(–58 ~ +302°F)옵션: –50 ~ +205°C(–58 ~ +401°F)
、:
강조하다:

Proline Promass P 500 flowmeter

,

Coriolis flowmeter with warranty

,

Electromagnetic flow meter industrial

지불 및 배송 조건
최소 주문 수량
1개
포장 세부 사항
각 장치에는 개별 상자가 있으며 모든 상자에는 표준 패키지에 포장되거나 고객 요청이 가능합니다.
배달 시간
5-8 근무일
지불 조건
L/C,D/A,D/P,T/T,웨스턴 유니온,MoneyGram
공급 능력
주당 1000 조각/조각 협상 가능
관련 제품

Proline Promass S 300 Coriolis flowmeter

가장 좋은 가격 을 구하라

Proline Promass P 500 Coriolis flowmeter

가장 좋은 가격 을 구하라

Proline Promass Q 300 Coriolis flowmeter

가장 좋은 가격 을 구하라

Proline t-mass F 500 thermal mass flowmeter

가장 좋은 가격 을 구하라
저희와 연락
지금 연락하세요
제품 설명

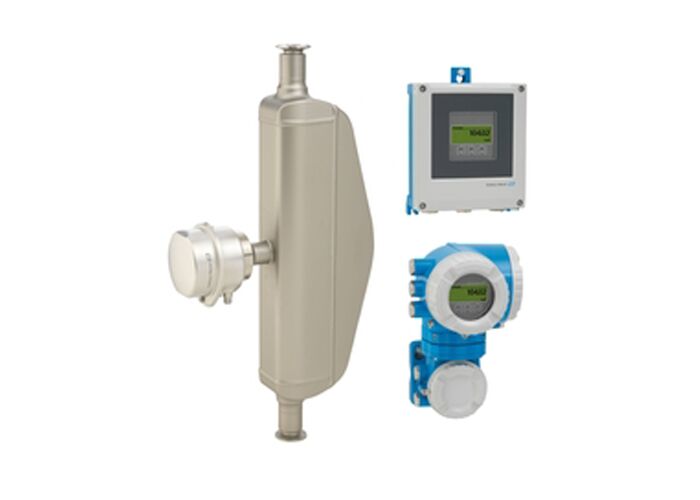

Proline Promass P 500 Coriolis Flowmeter
The Promass P 500 is a specialized Coriolis flowmeter designed for sterile processes in the life sciences industry. This remote version with up to 4 I/Os delivers exceptional accuracy and compliance for demanding biotech applications.
Key Applications
Specialist for sterile processes in life sciences, dedicated to applications requiring highest compliance with industry guidelines and regulations.
Technical Specifications
Maximum Measurement Error
Mass flow (liquid): ±0.10%
Volume flow (liquid): ±0.10%
Density (liquid): ±0.0005 g/cm³
Measuring Range
0 to 70,000 kg/h (0 to 2,570 lb/min)
Medium Temperature
Standard: -50 to +150 °C (-58 to +302 °F)
Option: -50 to +205 °C (-58 to +401 °F)
Maximum Process Pressure
PN 40, Class 150, 20K
Device Features
Sensor Features
  • ASME BPE, 3-A and EHEDG conform & low delta ferrite
  • Electropolished measuring tube in 1.4435 (316L)
  • Fast recovery from CIP/SIP processes
  • Space-saving installation with no inlet/outlet run requirements
Transmitter Features
  • Remote version with up to 4 I/Os
  • Backlit display with touch control and WLAN access
  • Numerous freely combinable I/Os and fieldbuses
  • Integrated verification with Heartbeat Technology
Measured Variables
Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration
Materials & Construction
Component Material
Measuring Tube 1.4435 (316L)
Connection 1.4435 (316L); 1.4404 (316/316L)
Sensor Housing 1.4301 (304), corrosion resistant
Transmitter Housing AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; Polycarbonate
Environmental Specifications
Ambient Temperature
Standard: -40 to +60 °C (-40 to +140 °F)
Option: -50 to +60 °C (-58 to +140 °F)
Degree of Protection
Sensor remote version: IP66/67, type 4X enclosure
Option: IP69
Communication & I/O
Outputs
4-20 mA HART (active/passive), 4-20 mA WirelessHART, 4-20 mA (active/passive), Pulse/frequency/switch output (active/passive), Double pulse output (active/passive), Relay output
Inputs
Status input, 4-20 mA input
Digital Communication
HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, MODBUS TCP over Ethernet-APL, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA
Certifications & Approvals
  • Hazardous Area: ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, KC
  • Product Safety: CE, C-tick, EAC marking
  • Functional Safety: IEC 61508, applicable per IEC 61511
  • Metrological: ISO/IEC 17025 calibration, ISO 9001:2015 compliance
  • Pressure: PED, CRN
  • Material: 3.1 material certificate
  • Hygienic: 3-A, EHEDG, ASME BPE, ISPE, cGMP
Power Supply
DC 24 V, AC 100 to 230 V, AC 100 to 230 V / DC 24 V (non-hazardous area)
