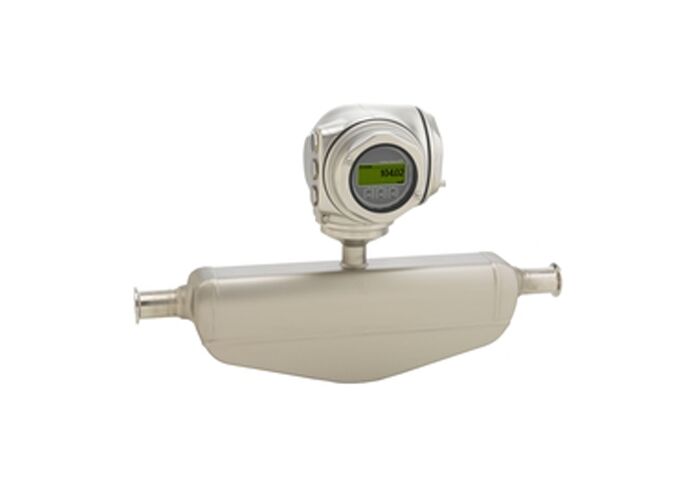

Name: Proline Promass P 300 Coriolis flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: 프롤린 프로매스 P 300
Price: 2,540.00 USD
Availability: InStock

집 > 상품 > 전자장 유속계 >

Proline Promass P 300 Coriolis flowmeter

Proline Promass P 300 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

원래 장소:

스위스

브랜드 이름:

Endress+Hauser

인증:

모델 번호:

프롤린 프로매스 P 300

저희와 연락

인용 을 요청 하십시오

Proline Promass P 300 Coriolis flowmeter

제품 세부 정보

측정 범위:

0 ~ 70,000kg/h(0 ~ 2,570lb/min)

맥스. 프로세스 압력:

PN 40, 클래스 150, 20K

중간 온도 범위:

표준: –50 ~ +150°C(–58 ~ +302°F)

센서 하우징 소재:

1.4301(304), 내부식성

송신기 하우징 소재:

코팅된 AlSi10Mg; 위생적인 트랜스미터 설계를 위한 스테인레스 스틸

강조하다:

Proline Promass P 300 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

지불 및 배송 조건

최소 주문 수량

1개

포장 세부 사항

각 장치에는 개별 상자가 있으며 모든 상자에는 표준 패키지에 포장되거나 고객 요청이 가능합니다.

배달 시간

5-8 근무일

지불 조건

L/C,D/A,D/P,T/T,웨스턴 유니온,MoneyGram

공급 능력

주당 1000 조각/조각 협상 가능

Proline Promass S 300 Coriolis flowmeter

가장 좋은 가격 을 구하라

Proline Promass P 500 Coriolis flowmeter

가장 좋은 가격 을 구하라

Proline Promass Q 300 Coriolis flowmeter

가장 좋은 가격 을 구하라

Proline t-mass F 500 thermal mass flowmeter

가장 좋은 가격 을 구하라

저희와 연락

지금 연락하세요

제품 설명

Proline Promass P 300 Coriolis Flowmeter

Specialist for life sciences with a compact, easily accessible transmitter dedicated to applications under sterile conditions.

Field of Application

Promass P is the specialist for sterile processes in the life sciences industry, dedicated to biotech applications requiring highest compliance with guidelines and regulations. With its compact transmitter, it offers high flexibility in operation and system integration.

Key Benefits

Highest process quality - fully compliant to industry requirements
Fewer process measuring points - multivariable measurement (flow, density, temperature)
Space-saving installation - no inlet/outlet run requirements
Full access to process and diagnostic information
Reduced complexity and variety - freely configurable I/O functionality
Integrated verification - Heartbeat Technology

Technical Specifications

Measuring Principle

Coriolis

Measured Variables

Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration

Max. Measurement Error

Mass flow (liquid): ±0.1%
Volume flow (liquid): ±0.1%
Density (liquid): ±0.0005 g/cm³

Measuring Range

0 to 70,000 kg/h (0 to 2,570 lb/min)

Nominal Diameter Range

DN 8 to 50 (⅜ to 2")

Max. Process Pressure

PN 40, Class 150, 20K

Medium Temperature

Standard: -50 to +150 °C (-58 to +302 °F)
Option: -50 to +205 °C (-58 to +401 °F)

Ambient Temperature

Standard: -40 to +60 °C (-40 to +140 °F)
Option: -50 to +60 °C (-58 to +140 °F)

Device Properties

ASME BPE, 3-A and EHEDG conform & low delta ferrite
Electropolished measuring tube in 1.4435 (316L)
Fast recovery from CIP/SIP
Compact dual-compartment housing with up to 3 I/Os
Backlit display with touch control and WLAN access
Remote display available

Wetted Materials

Measuring tube: 1.4435 (316L)
Connection: 1.4435 (316L); 1.4404 (316/316L)

Inputs & Outputs

Outputs: 3 outputs including 4-20 mA HART, WirelessHART, pulse/frequency/switch output, relay output
Inputs: Status input, 4-20 mA input

Digital Communication

HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, MODBUS TCP over Ethernet-APL, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA

Power Supply

DC 24 V, AC 100 to 230 V, AC 100 to 230 V / DC 24 V (non-hazardous area)

Approvals & Certifications

ATEX IECEx cCSAus NEPSI INMETRO EAC UK Ex KC CE C-tick PED CRN 3-A EHEDG ASME BPE ISPE cGMP
