Name: Proline Promass F 500 Coriolis flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: 프롤린 프로마스 F 500
Price: 2,540.00 USD
Availability: InStock

집 > 상품 > 전자장 유속계 >

Proline Promass F 500 Coriolis flowmeter

Proline Promass F 500 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter for industrial use

브랜드 이름:

Endress+Hauser

인증:

모델 번호:

프롤린 프로마스 F 500

저희와 연락

인용 을 요청 하십시오

Proline Promass F 500 Coriolis flowmeter

제품 세부 정보

측정 범위:

0 ~ 2 200 000 kg/h (0 ~ 80 840 lb/min)

맥스. 프로세스 압력:

PN 100, 클래스 600, 63K

송신기 하우징 소재:

코팅된 AlSi10Mg; 316L과 유사한 1.4409(CF3M); 폴리카보네이트

위험 지역 승인:

Atex, IECEX, CCSAUS, NEPSI, Inmetro, EAC, KC

제품 안전:

CE, C-tick, EAC 마킹

해양 승인 및 인증서:

LR 승인, DNV 승인, ABS 승인, BV 승인, CCS 승인

강조하다:

Proline Promass F 500 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter for industrial use

지불 및 배송 조건

최소 주문 수량

1개

포장 세부 사항

각 장치에는 개별 상자가 있으며 모든 상자에는 표준 패키지에 포장되거나 고객 요청이 가능합니다.

배달 시간

5-8 근무일

지불 조건

L/C,D/A,D/P,T/T,웨스턴 유니온,MoneyGram

공급 능력

주당 1000 조각/조각 협상 가능

Proline Promass S 300 Coriolis flowmeter

가장 좋은 가격 을 구하라

Proline Promass P 500 Coriolis flowmeter

가장 좋은 가격 을 구하라

Proline Promass Q 300 Coriolis flowmeter

가장 좋은 가격 을 구하라

Proline t-mass F 500 thermal mass flowmeter

가장 좋은 가격 을 구하라

저희와 연락

지금 연락하세요

제품 설명

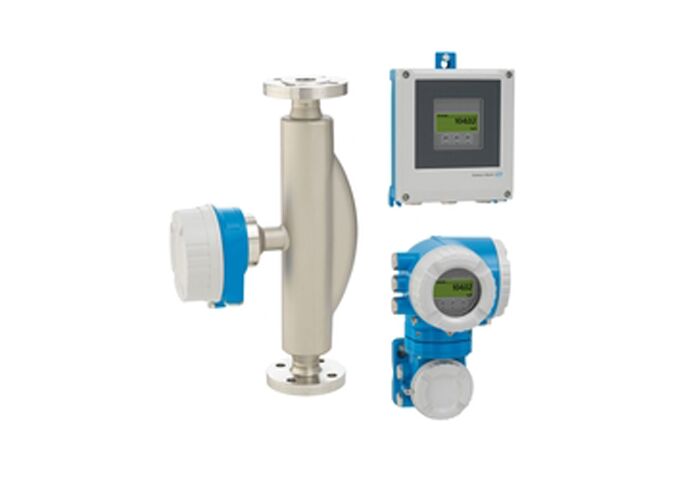

Proline Promass F 500 Coriolis Flowmeter

The Promass F 500 is a premium Coriolis flowmeter offering exceptional accuracy and robustness. Available as a remote version with up to 4 I/Os, it delivers highest measurement performance for liquids and gases under demanding process conditions.

Key Features

Highest Process Safety: Immune to fluctuating and harsh environments
Multivariable Measurement: Flow, density, temperature with fewer process measuring points
Space-Saving Installation: No inlet/outlet run requirements
Advanced Diagnostics: Full access to process and diagnostic information

Technical Specifications

Measuring Principle	Coriolis
Nominal Diameter Range	DN 8 to 250 (³⁄₈ to 10")
Measured Variables	Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration
Measuring Range	0 to 2,200,000 kg/h (0 to 80,840 lb/min)
Max. Process Pressure	PN 100, Class 600, 63K

Measurement Accuracy

Mass Flow (Liquid)	±0.10% (standard), ±0.05% (option)
Volume Flow (Liquid)	±0.10%
Mass Flow (Gas)	±0.25%
Density (Liquid)	±0.0005 g/cm³

Temperature Ranges

Medium Temperature	Standard: -50 to +150 °C (-58…+302 °F) Option: -50 to +240 °C (-58…+464 °F) High Temperature Option: -50 to +350 °C (-58…+662 °F) Option: -196 to +150 °C (-320 to +302 °F)
Ambient Temperature	Standard: -40 to +60 °C (-40 to +140 °F) Option: -60 to +60 °C (-76 to +140 °F)

Materials & Construction

Wetted Materials	Measuring Tube: 1.4539 (904L); 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022) Connection: 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022); 1.4301 (F304)
Housing Materials	Sensor: Standard 1.4301 (304), corrosion resistant Transmitter: AlSi10Mg, coated; 1.4409 (CF3M); Polycarbonate

Transmitter Features

Remote version with up to 4 I/Os
Backlit display with touch control and WLAN access
Standard cable between sensor and transmitter
Freely configurable I/O functionality
Integrated verification via Heartbeat Technology

Certifications & Approvals

Hazardous Area

ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, KC

Product Safety

CE, C-tick, EAC marking

Metrological

Calibration performed on accredited facilities (ISO/IEC 17025)
Heartbeat Technology complies with ISO 9001:2015 requirements
MI-005, NTEP, MC, MI-002, PTB

Marine

LR, DNV, ABS, BV, CCS approvals

Pressure

PED, CRN, AD 2000

Material

3.1 material, NACE MR0175/MR0103, PMI, welding tests per EN ISO, ASME, NORSOK

Hygienic

3-A, EHEDG, cGMP
