Name: Deltabar PMD55B - differential pressure transmitter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: 델타바 PMD55B
Price: 152.00 USD
Availability: InStock

집 > 상품 > 정밀 압력 센서 >

Deltabar PMD55B - differential pressure transmitter

Deltabar PMD55B pressure transmitter

differential pressure sensor with warranty

precision pressure transmitter PMD55B

원래 장소:

스위스

브랜드 이름:

Endress+Hauser

모델 번호:

델타바 PMD55B

저희와 연락

인용 을 요청 하십시오

Deltabar PMD55B - differential pressure transmitter

제품 세부 정보

정확성:

다드:최대 0.05%

백금::

최대 0.025%

압력 측정 범위:

400mbar...700bar(1.5psi...10,500psi)

주요 접액부:

316L, AlloyC, 탄탈, 모넬, PTFE, 금

재료 공정 막:

316L, 합금C, 탄탈, 모넬, PTFE, 금

측정 셀:

400mbar...700bar(6psi...10,500psi)

강조하다:

Deltabar PMD55B pressure transmitter

differential pressure sensor with warranty

precision pressure transmitter PMD55B

지불 및 배송 조건

최소 주문 수량

1개

포장 세부 사항

각 장치에는 개별 상자가 있으며 모든 상자에는 표준 패키지에 포장되거나 고객 요청이 가능합니다.

배달 시간

5-8 근무일

지불 조건

L/C,D/A,D/P,T/T,웨스턴 유니온,MoneyGram

공급 능력

주당 1000 조각/조각 협상 가능

Deltabar PMD55B - differential pressure transmitter

가장 좋은 가격 을 구하라

Honeywell 24CE Series Miniature housing IEC945-5-1, EN60947-5-1. Metal housing. lP66. CE. Silver contacts

가장 좋은 가격 을 구하라

Honeywell 1CPS Series Single head cable pull. UL, CSA, CE, SIL3. IP67. NEMA 1, 4, 12, 13. Silver & gold contacts.

가장 좋은 가격 을 구하라

GK Series Key Operated Safety Interlock Switch with IP67 NEMA 1 4 12 13 Rating and -25 °C to 85 °C Operating Range

가장 좋은 가격 을 구하라

저희와 연락

지금 연락하세요

제품 설명

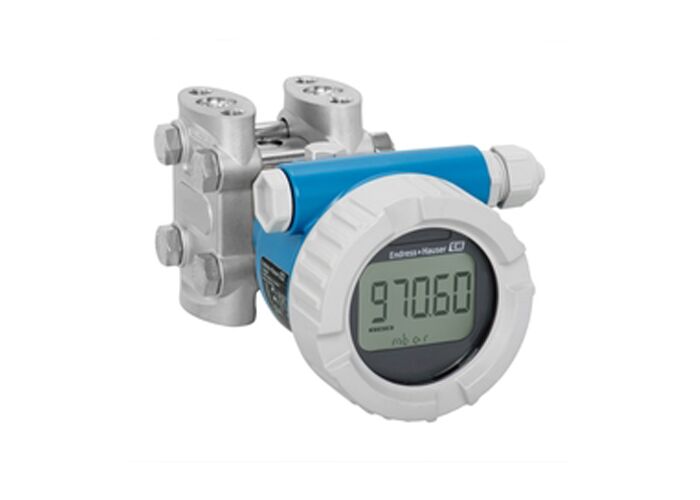

Deltabar PMD55B Differential Pressure Transmitter

The Deltabar PMD55B differential pressure transmitter represents the latest generation of robust, easy-to-operate industrial measurement instruments designed for both local and remote operation.

Key Specifications

Accuracy:
Standard: up to 0.075%
Platinum: up to 0.055%

Measuring Range:
10 mbar...40 bar (0.15 psi...600 psi)

Process Temperature:
-40°C...110°C (-40°F...230°F)

Pressure Range:
10 mbar...40 bar (0.15 psi...600 psi)

Main Wetted Parts:
316L, AlloyC

Static Pressure:
Up to 250 bar (3750 psi)

Field Application

This advanced transmitter enables wireless control via the SmartBlue app on mobile devices using secure Bluetooth connectivity. The PMD55B supports condition-based maintenance, significantly enhancing technical service efficiency through intuitive software wizards that guide users through setup and proof testing procedures.

Key Benefits

Wireless device control in process areas without interrupting operations
Enhanced safety by reducing on-site accidents in difficult-to-access areas
Reduced systematic failures with error-free SIL commissioning and guided proof testing

Technical Details

Measuring Principle:
Differential Pressure

Long Term Stability:
0.05% of URL/year
0.13% of URL/5 years
0.23% of URL/10 years

Ambient Temperature:
-40°C...85°C (-40°F...185°F)

Process Connection:
NPT 1/4-18, RC1/4"

Communication:
4...20 mA HART
PROFINET with Ethernet-APL
Bluetooth® wireless technology (optional)

Special Features

Bluetooth® operation and maintenance with SmartBlue App, RFID TAG for easy identification, and plug-and-play functionalities for simplified integration.

Certifications & Approvals

ATEX

CSA

IECEx

JPN Ex

INMETRO

NEPSI

UK Ex

SIL

EN 10204-3.1

NACE MR0175

NACE MR0103

AD2000

NSF

KTW

Application Limits

None - suitable for diverse industrial applications
