원래 장소:
중국
브랜드 이름:
KACISE
인증:
CE
모델 번호:
TDLAS200B
The TDLAS201 laser gas telemetry module utilizes laser absorption spectroscopy technology. It emits a specific wavelength laser beam to detect target gas presence within the optical path range, accurately measuring gas concentration.
Molecular absorption spectrum: Methane molecules absorb light at specific wavelengths.
Beer-Lambert's law: Light absorption by methane gas is proportional to gas thickness and concentration.
This technology uses wavelength-specific laser beams to measure methane concentration through light attenuation analysis, with unique methane selectivity. Multiple reflection detection cells enhance sensitivity by allowing repeated laser passes through the measured gas.
| Parameter | Specification |
|---|---|
| Detection object | Methane (CH4) |
| Measurement principle | Laser absorption spectrum (TDLAS) |
| Static detection limit | 0.5ppm@25℃ 5SPS (typical value) |
| Volume | 53ml |
| Fastest response time | 90s |
| Measurement range | 0-5000ppm, 0-10000ppm |
| Measurement deviation |
0-200 ppm: ±2 ppm 200-1000 ppm: ±1% 1000-5000 ppm: ±2% 5000-10000 ppm: ±3% |
| 12hrs drift | +/-1.5ppm |
| Operating temperature | -20~50℃ |
| Power supply | 5-12VDC 1W (typical) 6W (max) Recommended 12V 1A |
| Dimensions | 115*59*40mm |
| Gas inlet/outlet port | Pagoda direct M-5AU-4 |

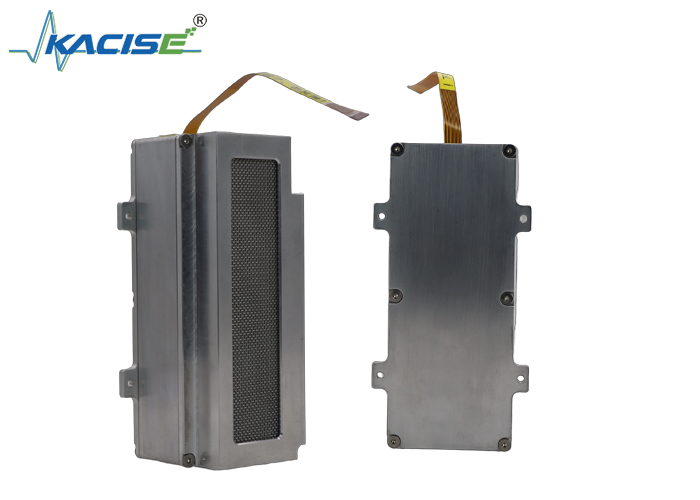

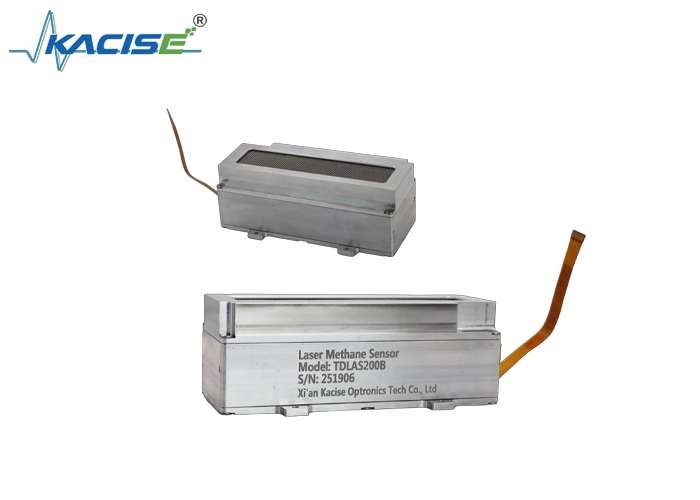

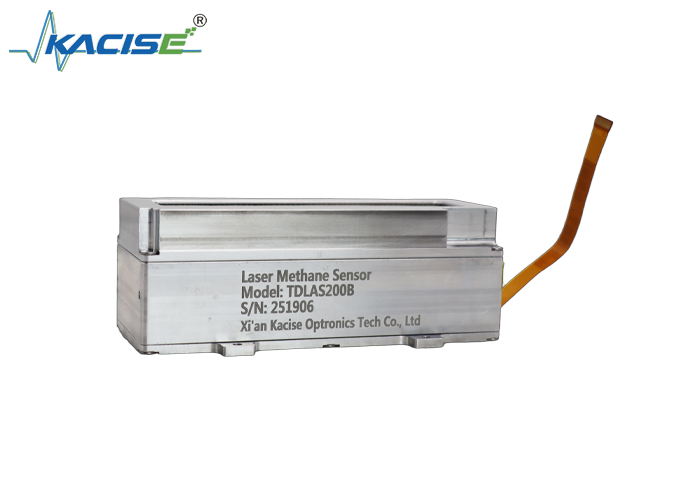

TDLAS200B (Diffusion) detection module main unit measures 115*59*40mm (excluding cables and gas connectors).
For detailed specifications or custom requirements, please contact our technical team.
