Honeywell's MICRO SWITCH CPS Series Cable-Pull Safety Switches provide a readily accessible emergency stop signal, offering a cost-effective solution compared to multiple emergency stop push-buttons. The CPS Series features an internal mechanism that latches on both slackened (push) and pulled cable conditions.

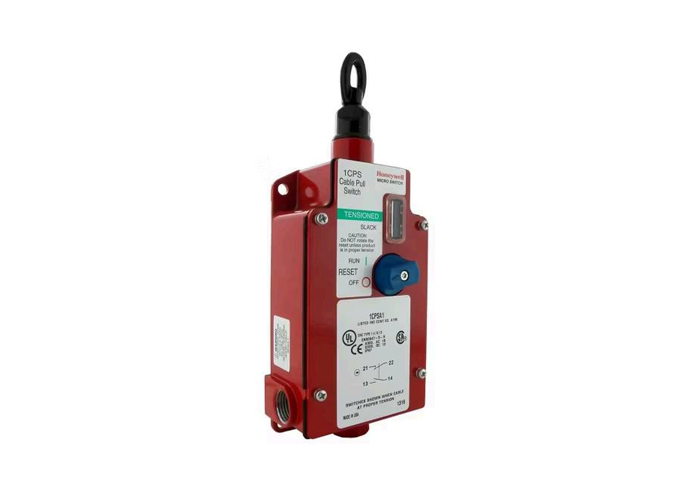

The 1CPS Series is designed for applications with cable spans up to 76 m (250 ft), making it ideal for shorter runs or zone protection in automated systems. For longer conveyor lines up to 152 m (500 ft), the 2CPS Series is available.
The system includes a visual tension indicator and direct-opening switch contacts that remain closed when properly tensioned. When the cable is pulled, slackened, or broken, the NC (Normally Closed) contacts open immediately and remain latched until manually reset.
Unique internal mechanism latches on both slackened (push) and pulled cable conditions for enhanced safety.
| Characteristic | Parameter |
|---|---|
| Description | Cable-pull safety switches |
| Switching options | 1NO/1NC, 2NO/2NC, 1NO/3NC, or 4NC direct acting |
| Sealing | IP67, NEMA 1, 4, 12, 13 |
| Contacts | Silver, gold plated over silver |
| Conduit/connectors | 1/2 NPT, PG 13.5, 20 mm, PF 1/2; Brad Harrison 10-pin conductor |
| Operating temperature | -40°C to 80°C (-40°F to 176°F) |
| Mechanical endurance | 1 million operations |
| Approvals | UL, CSA, CE, UKCA, SIL |
| AC Voltage | AC Current | DC Voltage | DC Current |
|---|---|---|---|
| 120V | 6A | 24V | 2.8A |
| 240V | 3A | 125V | 0.55A |
| 250V | 0.27A |
Ith = 10 A
