제품 설명

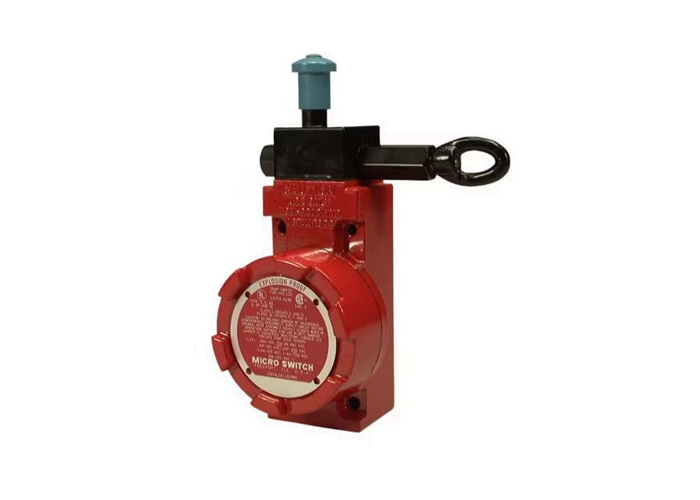

Honeywell CLSX Series Single Head Cable Pull

The CLSX Series Cable Pull Safety Limit Switch is designed to provide emergency stop protection for conveyor lines in hazardous atmospheres. The CLSX Series withstands the pressure of an internal explosion and cools the exploding gases below the kindling temperature of the explosive atmosphere. Flame paths are provided by the cover housing threads and an extended plunger between the switch cavity and head.

GENERAL INFORMATION

Explosion-proof switches are designed specifically for use in hazardous location applications
Flame paths within the switch housing cool exploding gases below kindling temperature of the atmosphere
Complies with NEMA standards: 1, 3, 4, 7, 9, 13. UL listed and CSA certified: Class I, Div 1, Groups B, C, D; Class II, Div 1, Groups E, F, G
A pull on the actuating cable will cause all switch contacts to change state: NC (normally closed) to open and NO (normally open) to close
When cable is released, switch contacts return to their original state

Available Basic Switch Options:

Direct acting switch contact: 1 NC
Direct acting switch contacts: 1 NO 1 NC
Snap action switch contacts: 1 NO 1 NC (NC circuit does not meet requirements for positive break and is not electrically isolated from the NO circuit)

Head may be positioned in any of four directions

Momentary Switch

AUXILIARY CONTACTS

Used for monitoring or signaling, i.e., indicators, pilot lights and alarms.

MAXIMUM ACTUATING CABLE LENGTH

Depending upon variations in ambient temperature, maximum cable length is 200 ft. (60 m).

OTHER AVAILABLE FEATURES

Conduit opening options
Hardware kits and cables for various length installations

PRODUCT MODELS

Part Number	Description
CLSXB4B	LIMIT SWITCH
CLSXB4T	MICRO SWITCH CLSX Series Explosion-proof Cable Pull Safety Switch, 1NC1NO Direct Opening, Slow Action, Explosion-proof, 12 NPT, Silver Contacts
CLSXB8T	MICRO SWITCH CLSX Series Explosion-proof Cable Pull Safety Switch, 2NC Direct Opening, Slow Action, Explosion-proof, 12 NPT, Silver Contacts
