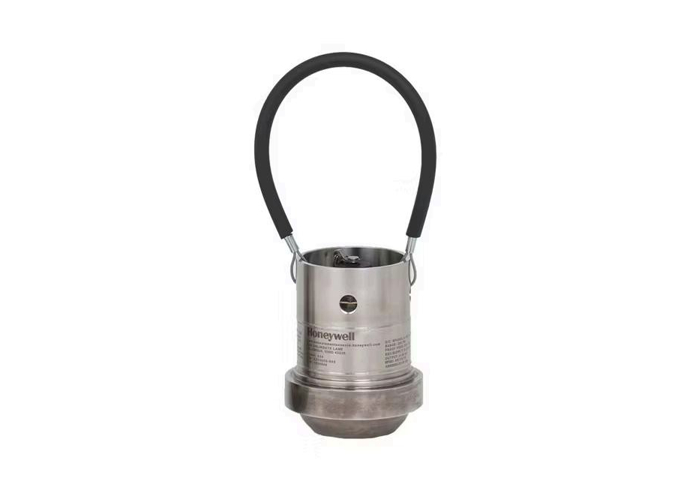

Honeywell Model 434 Wing Union Pressure Transducer with 0 psi to 20,000 psi Range and ±0.2% Full-Scale Accuracy

Honeywell Model 434 Wing Union Pressure Transducer with 0 psi to 20,000 psi Range and ±0.2% Full-Scale Accuracy

0 psi to 20

000 psi Pressure Transducer

±0.2% Full-Scale Accuracy Wing Union Pressure Sensor

브랜드 이름:

Honeywell

모델 번호:

모델 434

저희와 연락
인용 을 요청 하십시오
제품 세부 정보
표준 조리개.:
0psi ~ 20,000psi
정확성:
±0.2%FSS BFSL
산출:
4mA ~ 20mA, 2선
온도, 작동:
-40°C~125°C[-40°F~257°F]
온도, 보상됨:
-40°C~85°C[-40°F~185°F]
접액부:
Inconel® 718(NACE 준수)
강조하다:

0 psi to 20

,

000 psi Pressure Transducer

,

±0.2% Full-Scale Accuracy Wing Union Pressure Sensor

지불 및 배송 조건
최소 주문 수량
1pcs
포장 세부 사항
각 장치에는 개별 상자가 있으며 모든 상자에는 표준 패키지에 포장되거나 고객 요청이 가능합니다.
배달 시간
5-8 일
지불 조건
L/C, D/A, D/P, T/T, Western Union, MoneyGram
공급 능력
주당 1000 조각/조각 협상 가능
제품 설명
Honeywell Model 434 Wing Union Pressure Transducers
Standard aperture. 0 psi to 20,000 psi. ±0.2% full-scale accuracy.
Overview
Honeywell Model 434 Wing Union Pressure Transducer with 0 psi to 20,000 psi Range and ±0.2% Full-Scale Accuracy 0
Models 434/435/437 Wing Union/Hammer Union Pressure Sensors are designed for demanding oil and gas applications as well as stimulation and circulation systems. They feature an all-welded, stainless steel assembly with the sensor diaphragm and wing union fitting machined as one part, providing hermetic integrity and minimizing media leakage.
Value to Customers
  • Durable: Weco® Wing Union-compatible fittings are machined of Inconel® X-750, or optional NACE-compliant Inconel® 718, allowing for use with abrasive and corrosive media. Protective cage option provides electrical connection protection.
  • Reliable: All-welded, stainless steel assembly, shock/vibration ratings, and isolated pressure sensing diaphragm increase reliability.
  • Accurate: High accuracy option provides confidence in measured pressure values, particularly for smaller pressure changes, allowing precise drilling operation adjustments.
  • Availability and service: Global manufacturing and support enable quick delivery of customized products to meet project timelines.
Differentiators
  • High or standard accuracy capability meets tighter system requirements with lower error bands than comparable competitive models.
  • Shunt calibration option enhances configurability and flexibility - 1-wire shunt calibration is achievable with a single barrier application, helping minimize installation costs.
  • IEC Ex approval allows for use in hazardous areas in Asia-Pacific, EMEA, and by the U.S. Coast Guard.
  • Protective cage option available.
  • Welded construction for enhanced durability.
Part Numbers
Part Number Description
060-P774-01 BP434EJ, 6, 1AC, 2AK, 6BF, 7AE, 10J:MODEL 434
060-P909-01-01 BP434EJ, 6, 1AC, 2AK, 6Z, 7AD, 9A, 10J:Model
060-R267-01 BP434DR, 6, 1AC, 2AK, 6BF, 7AE, 10J, 45E:Model
060-R310-01 BP434EL, 6, 1AC, 2AK, 6Z, 7AD, 10J:MODEL 434
060-R392-01 BP434EL, 6, 1AC, 2AK, 6A, 7AF, 10J:MODEL 434
