Name: High Pressure High Temperature Conductivity Sensor with 316 Stainless Steel 2-Electrode Design and Pt1000 Temperature Element
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: 센서 SC42/SX42
Price: 5,000.00 USD
Availability: InStock

집 > 상품 > 수질 감지 센서 >

High Pressure High Temperature Conductivity Sensor with 316 Stainless Steel 2-Electrode Design and Pt1000 Temperature Element

316 Stainless Steel Conductivity Sensor

2-Electrode Design Water Quality Sensor

Pt1000 Temperature Element Contacting Sensor

브랜드 이름:

Yokogawa

모델 번호:

센서 SC42/SX42

저희와 연락

인용 을 요청 하십시오

High Pressure High Temperature Conductivity Sensor with 316 Stainless Steel 2-Electrode Design and Pt1000 Temperature Element

제품 세부 정보

셀 상수:

0.1/cm; 1.0/cm

온도 요소:

PT1000

토목 재료:

316 스테인레스 스틸

디자인 sytle:

2- 전극

강조하다:

316 Stainless Steel Conductivity Sensor

2-Electrode Design Water Quality Sensor

Pt1000 Temperature Element Contacting Sensor

지불 및 배송 조건

최소 주문 수량

1pcs

포장 세부 사항

각 장치에는 개별 상자가 있으며 모든 상자에는 표준 패키지에 포장되거나 고객 요청이 가능합니다.

배달 시간

5-8 일

지불 조건

MoneyGram, Western Union, T/T, D/P, D/A, L/C.

공급 능력

주당 1000 조각/조각 협상 가능

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

가장 좋은 가격 을 구하라

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

가장 좋은 가격 을 구하라

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

가장 좋은 가격 을 구하라

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

가장 좋은 가격 을 구하라

저희와 연락

86--17719566736

지금 연락하세요

제품 설명

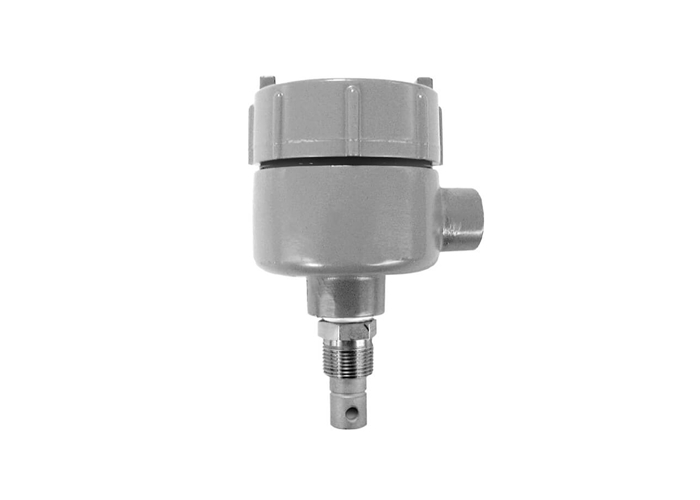

High Pressure/High Temperature Conductivity Sensor SC42/SX42

High Pressure - High Temperature Contacting sensor primarily designed for Boiler Blowdown and Condensate Leak detection applications. These conductivity cells have extremely high temperature and pressure ratings: the threaded types can handle 16 bar at 200°C and the flanged types can handle 40 bar at 250°C.

Product Selection

Specification	SC42 Small Bore	SX42 Large Bore	SX42 Large Bore (Flanged)
Model Code	SC42 Small Bore	SX42 Large Bore	SX42 Large Bore
Cell Constants	0.1/cm; 1.0/cm	0.1/cm; 1.0/cm	0.1/cm; 1.0/cm
Ranges	0.4-2,000 µS/cm; 4.0-5,000 µ/cm	0.02-2,000 µS/cm; 0.2-20,000 µS/cm	0.02-2,000 µS/cm; 0.2-20,000 µS/cm
Temperature Element	Pt1000	Pt1000	Pt1000
Pressure Rating	7 bar/100 PSIG	16 bar/228 PSIG	40 bar/570 PSIG
Maximum Temperature	100°C/212°F	up to 200°C	up to 250°C
Installation Connections	3/4" NPT Fitting; 1", 1.5" or 2" Tri-Clamp	1" NPT	2" 600lb ANSI Flange
Integral Cable	NO	NO	NO
Materials Of Construction	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel
Design Style	2-Electrode	2-Electrode	2-Electrode

Key Features

Designed for high-pressure, high-temperature applications
Ideal for boiler blowdown and condensate leak detection
Available in small bore and large bore configurations
Multiple installation connection options
Constructed from durable 316 stainless steel
2-electrode design for reliable conductivity measurement
