Name: Industrial pH/ORP Electrode Water Quality Sensor with Wide Measuring Range High Temperature and Pressure Resistance
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: SC29
Price: 5,000.00 USD
Availability: InStock

집 > 상품 > 수질 감지 센서 >

Industrial pH/ORP Electrode Water Quality Sensor with Wide Measuring Range High Temperature and Pressure Resistance

Wide measuring range pH/ORP Electrode

High temperature range Water Quality Sensor

High pressure resistance Industrial Electrode

브랜드 이름:

Yokogawa

모델 번호:

SC29

저희와 연락

인용 을 요청 하십시오

Industrial pH/ORP Electrode Water Quality Sensor with Wide Measuring Range High Temperature and Pressure Resistance

제품 세부 정보

측정 범위 ::

-1500 ... 1500MV

온도 범위 ::

-10 내지 100 'Ｃ

압력 범위:

1.5 kPa ... 500 kPa

막:

단단한 백금 컵

횡격막:

포러스 PTFE

강조하다:

Wide measuring range pH/ORP Electrode

High temperature range Water Quality Sensor

High pressure resistance Industrial Electrode

지불 및 배송 조건

최소 주문 수량

1pcs

포장 세부 사항

각 장치에는 개별 상자가 있으며 모든 상자에는 표준 패키지에 포장되거나 고객 요청이 가능합니다.

배달 시간

5-8 일

지불 조건

L/C, D/A, D/P, T/T, Western Union, MoneyGram

공급 능력

주당 1000 조각/조각 협상 가능

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

가장 좋은 가격 을 구하라

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

가장 좋은 가격 을 구하라

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

가장 좋은 가격 을 구하라

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

가장 좋은 가격 을 구하라

저희와 연락

86--17719566736

지금 연락하세요

제품 설명

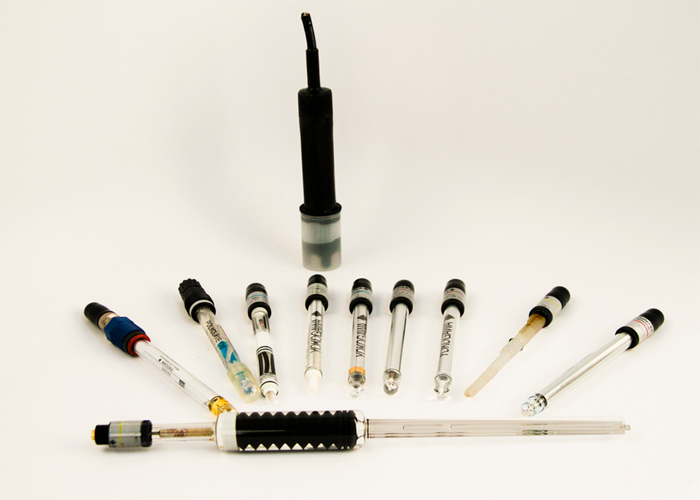

Industrial pH/ORP Electrodes

The heart of a pH measuring loop is the electrode system. Yokogawa has designed a wide range of electrodes to ensure reliable performance under the most severe industrial conditions. These electrodes meet DIN 19263 standards (excluding refillable types) and feature high standardization for compatibility with standard fittings. Color-coded strips on electrodes and cables prevent incorrect installation.

Key Features

Comprehensive electrode selection for all process conditions
Gold-plated spring connectors ensure excellent electrical contact
Coaxial plug and socket with IP65-rated watertight sealing
Color-coded identification system for easy installation
Standardized design for mounting in flow- and immersion fittings

Technical Specifications

SC29(C) Series Models

Model	Specifications
SC29(C)-PT29	Combined reference/reference electrode (Non-flow type) Measuring range: -1500...1500mV Temperature range: -10 to 100°C Pressure range: 1.5 kPa...500 kPa Membrane: Solid Platinum cup Diaphragm: Porous PTFE (Impedance <5 kΩ) Reference system: Ag/AgCl Saturated KCl
SC29(C)-PT55	Combined reference/reference electrode (Flow type) Temperature range: -10 to 100°C Pressure range: 1.5 kPa...500 kPa Membrane: Solid Platinum cup Diaphragm: Ceramic (Impedance <5 kΩ) Reference system: Ag/AgCl 3.3m KCl
SC29-PtG29	Combined reference/glass electrode Temperature range: 0 to 100°C Pressure range: 1.5 kPa...1000 kPa Membrane: Solid Platinum Glass: General purpose pH glass

Shipping Details

Model	Package Size	Weight
SC21(C), SC29(C)	1204545 mm (10.621 in)	0.08 kg (0.17 lbs)
SC21(C-AGESS, SC29C-PT55	3009573 mm (11.83.72.9 in)	0.22 kg (0.48 lbs)

Environmental Conditions

Storage temperature: -10 to +50°C (14 to 122°F). For long-term storage of unused electrodes, completely fill with electrolyte solution, close the refill opening, and fit the protective cap with a small piece of membrane filled with water.

Regulatory Compliance

CE: Compliant with RoHS Directive 2011/65/EU and Commission Delegated Directive (EU) 2015/863

Standards: EN-IEC 63000:2018 for technical documentation and hazardous substance assessment

UKCA: Compliant with The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012
