원래 장소:
중국
브랜드 이름:
kacise
인증:
ce
모델 번호:
KSIMU005M

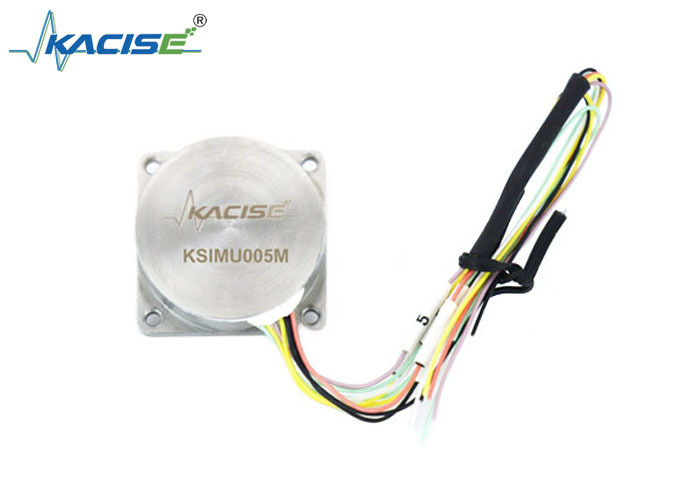

The KSIMU005M is an advanced inertial measurement module utilizing MEMS technology to accurately measure angular velocity and acceleration across three axes.
MEMS (Micro-Electro-Mechanical Systems) integrates micro-sensors, actuators, mechanical structures, power systems, and signal processing into compact, intelligent systems with micron-scale components. Common applications include accelerometers, gyroscopes, pressure sensors, and environmental sensors.
| Power Supply Parameters | |
|---|---|
| Input Voltage | 5±0.2 V DC |
| Input Current | ≤100mA |
| Gyro Performance | |
|---|---|
| Range | ±400°/s |
| Bias | 0±0.05°/s |
| Bias stability | ≤30°/h |
| Scale factor | 70±3LSB/°/s |
| Scale factor nonlinearity | ≤200ppm |
| Vibration error | ≤0.03°/s |
| Bandwidth | ≥100Hz |
| Accelerometer Performance | |
|---|---|
| Range | ±10g |
| Bias | 0±0.02g |
| Bias stability | ≤0.002g |
| Scale factor | 1000±30LSB/g |
| Bandwidth | ≥400Hz |
| Interface & Environment | |
|---|---|
| Interface | RS422 (1-bit start + 8-bit data + 1-bit even parity check + 1-bit stop) |
| Baud rate | 460800bps |
| Data update speed | ≤2.5ms |
| Operating temperature | -40℃ to +65℃ |
| Random vibration | 6.06 g |
