Place of Origin:
CHINA
브랜드 이름:
KACISE
인증:
CE
Model Number:
KSACC101Q
| Attribute | Value |
|---|---|
| Input Voltage | 15±1 VDC |
| Power consumption | ≤75mW @15VDC |
| Range | ±70g |
| Scale factor | 56Hz/g±5Hz/g |
| Scale factor repeatability(1σ,one month) | ≤50ppm |
| Bandwidth | ≥400Hz |

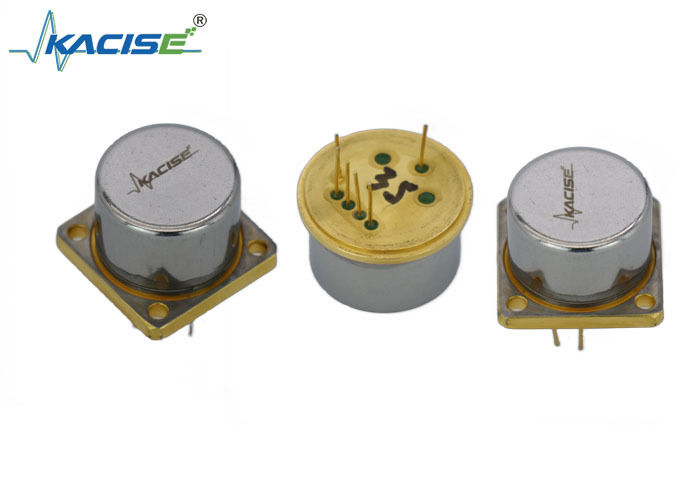

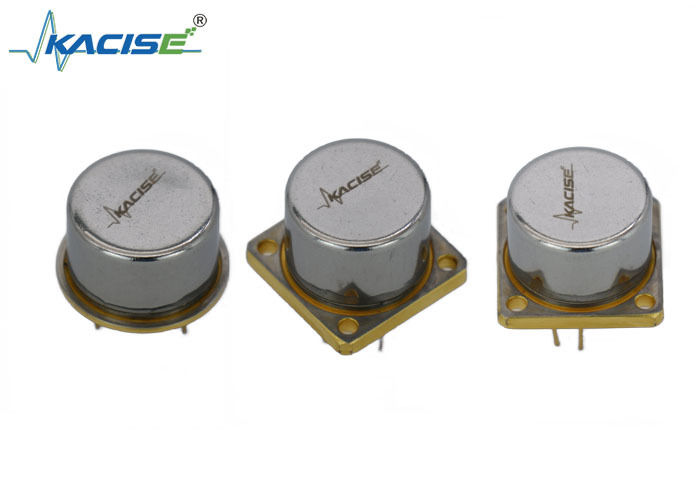

The KSACC101Q quartz vibration beam accelerometer is a solid-state digital output acceleration sensor featuring large range, compact size, high precision, low power consumption, fast start-up time, shock vibration resistance, and exceptional reliability. These characteristics make it superior to traditional analog output accelerometers.
| Power Supply Parameters | |
|---|---|
| Power Voltage | 14~16VDC |
| Power @25°C | 75mW @15VDC |
| Supply current | 5mA |
| Product Performance | |
| Range | ±70g |
| Size | 22mm×22mm×14mm |
| Bias | 0g±2g |
| Bias stability | ≤100ug |
| Bias temperature sensitivity | 100ug/°C |
| Bias repeatability | ≤100ug |
| Scale factor | 56Hz/g±5Hz/g |
| Scale factor temperature sensitivity | 500ppm/°C |
| Second order nonlinear coefficient | ≤80μg/g² |
| Second order nonlinearity coefficient repeatability | ≤50μg/g² |
| Scale factor repeatability | ≤50ppm |
| Temperature sensor | 40KHz±2%(0.3Hz/°C)@25°C |
| Noise | <10μg |
| Threshold | ≤1×10⁻⁵g |
| Bandwidth | ≥400Hz |
| Weight | ≤23g |
| Environmental Specifications | |
| Operating temperature | -45°C～+85°C |
| Storage temperature | -55°C～100°C |
| Random vibration | 5grms (20Hz～2000Hz) |
| Sine vibration | 10g peak,50 to 800Hz |
| Working shock | 100g |
| Shock | 200g |
