Place of Origin:
CHINA
브랜드 이름:
KACISE
인증:
CE
Model Number:

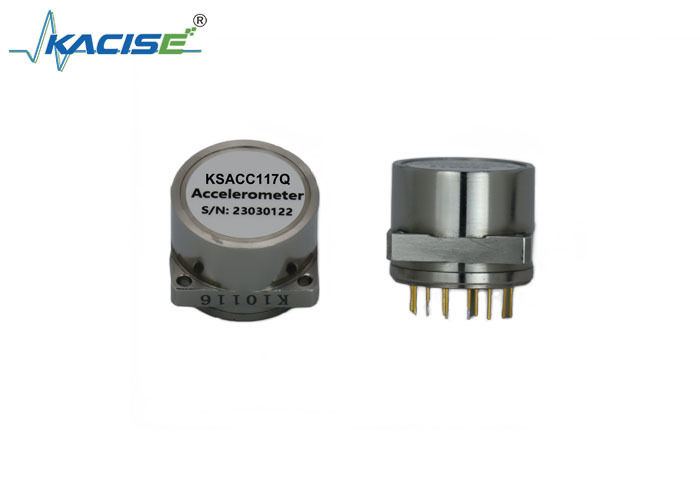

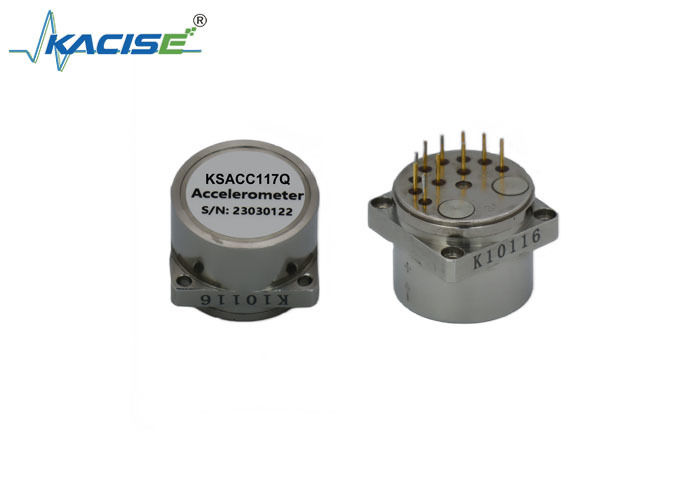

KSACC117Q
| Attribute | Value |
|---|---|
| Power Voltage | ±12~±18V DC |
| Input Range | ±10g |
| Bias | ≤10mg |
| Temperature Sensitivity | ≤100μg/°C |
| Three-hour Stability(1σ) | ≤100μg |
| Scale Factor | 2.3 ~ 3.5mA/g |
Quartz flexible accelerometer is a precision instrument comprising quartz glass flexible support and advanced servo circuit based on the principle of inertia. When the carrier is subjected to acceleration, the output is precisely proportional to the input acceleration. Our accelerometer features current output with high output impedance, allowing users to select sampling resistance according to requirements without affecting system stability.
Our quartz flexible accelerometer product line ranges from high-precision μg KSACC111Q accelerometers for satellite microgravity measurement to cost-effective, rugged KSACC117Q accelerometers. These instruments are widely used in aerospace, aviation, navigation, marine, automotive, petroleum, and geotechnical engineering applications, providing signals for navigation, guidance, control, leveling, and monitoring systems.
| Power Supply Parameters | |
| Power Voltage | 12~18VDC |
| Power at 25°C | 90mW |
| Supply current | 6mA |
| Product Performance | |
| Range | ±10g |
| Size | Ø25×25 |
| Bias | <10mg |
| Bias stability | ≤10ug |
| Bias temperature sensitivity | 100ug/°C |
| Bias repeatability | ≤60ug |
| Scale factor | 2.3～3.5mA/g |
| Scale factor temperature sensitivity | 100ppm/°C |
| Second order nonlinear coefficient | ≤60μg/g² |
| Second order nonlinearity coefficient repeatability | ≤30μg/g² |
| Scale factor repeatability | 100ppm |
| Noise | <5μg |
| Threshold | <5 μg |
| Bandwidth | <200 Hz |
| Weight | ≤60g |
| Environmental Specifications | |
| Operating temperature | -45°C～100°C |
| Storage temperature | -55°C～120°C |
| Random vibration | 15g(20~2000Hz) |
| Sine vibration | 15g peak,50 to 800Hz |
| Working shock | 200g |
| Shock | 500g |
Unit: mm
