Place of Origin:
CHINA
브랜드 이름:
KACISE
인증:
CE
Model Number:
KSACC115Q

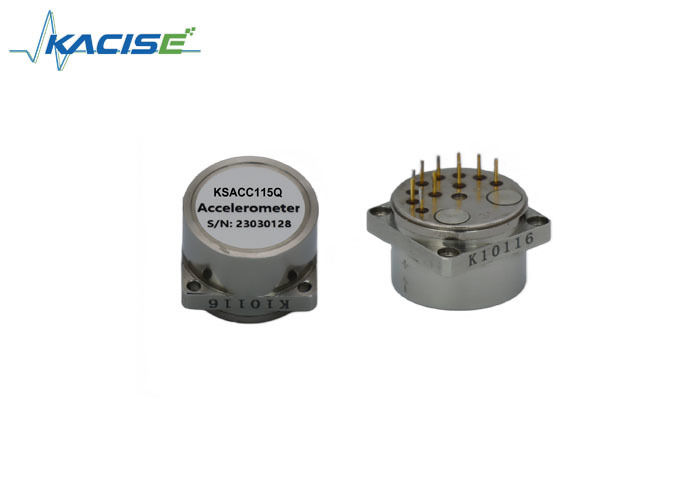

The KSACC115Q Quartz Flexible Accelerometer is a precision instrument featuring quartz glass flexible support and advanced servo circuitry based on inertia principles. When subjected to acceleration, it provides output precisely proportional to input acceleration with high output impedance current output.
| Attribute | Value |
|---|---|
| Power Voltage | ±12~±18V DC |
| Input Range | ±30g |
| Bias | ≤8mg |
| Temperature Sensitivity | ≤40μg/°C |
| One-month Composite Repeatability (1σ) | ≤50μg |
| Size | Ø25×25mm |
| Power Voltage | 12~18VDC |
| Power at 25°C | 90mW |
| Supply current | 6mA |
| Range | ±30g |
| Size | Ø25×25mm |
| Bias | <8mg |
| Bias stability | ≤50μg |
| Bias temperature sensitivity | 40μg/°C |
| Bias repeatability | ≤50μg |
| Scale factor | 1.0～1.6mA/g |
| Scale factor temperature sensitivity | 80ppm/°C |
| Second order nonlinear coefficient | ≤40μg/g² |
| Second order nonlinearity coefficient repeatability | ≤25μg/g² |
| Scale factor repeatability | 80ppm |
| Noise | <5μg |
| Threshold | <5μg |
| Bandwidth | <200Hz |
| Weight | ≤80g |
| Operating temperature | -45°C～100°C |
| Storage temperature | -55°C～120°C |
| Random vibration | 25g(30~2000Hz) |
| Sine vibration | 15g peak, 50 to 800Hz |
| Working shock | 200g |
| Shock | 500g |
Unit: mm
