Name: KSACC112Q Quartz Flexible Accelerometer ±20g Range
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSACC112Q
Price: 431.00 USD
Availability: InStock

집 > 상품 > 전자 자이로스코프 센서 >

KSACC112Q Quartz Flexible Accelerometer ±20g Range

quartz flexible accelerometer 20g range

quartz accelerometer fluid level meter

flexible accelerometer with high range

Place of Origin:

CHINA

브랜드 이름:

kacise

인증:

Model Number:

KSACC112Q

저희와 연락

인용 을 요청 하십시오

KSACC112Q Quartz Flexible Accelerometer ±20g Range

제품 세부 정보

전력 전압:

±12~±18V DC

작동 온도:

-45 ° C ~+80 ° C

저장 온도:

-55°C~+80°C

충격:

100g

진동 피크 사인:

15g@20Hz ~ 2000Hz

강조하다:

quartz flexible accelerometer 20g range

quartz accelerometer fluid level meter

flexible accelerometer with high range

지불 및 배송 조건

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

저전력 삼축 각률 자이로스코프, 로봇에 적용할 수 있습니다, 저장 온도 -65 ~ +125 °C), 무게 ≤40g

가장 좋은 가격 을 구하라

편향 변동 ≤0.1°/H 정밀 항법 및 Uav을 위한 ±5V 공급 전압의 지로 북측 탐지기

가장 좋은 가격 을 구하라

자이로스코프/각속도 센서/감각축 방향의 각속도를 측정하는 데 사용됩니다.

가장 좋은 가격 을 구하라

무게 ≤2.0kg의 항공기 승강 보조용 AI 비전 관성 내비게이션 시스템

가장 좋은 가격 을 구하라

저희와 연락

86--17719566736

지금 연락하세요

제품 설명

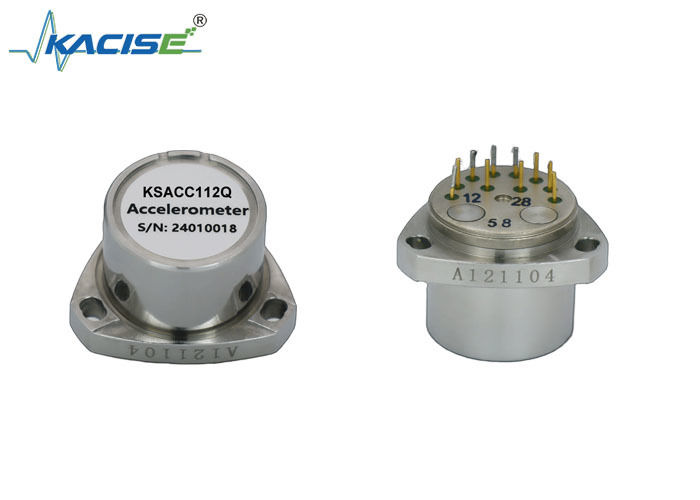

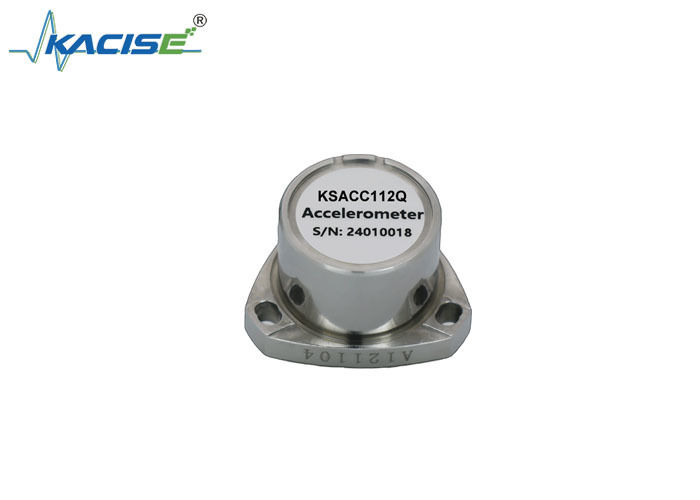

KSACC112Q Quartz Flexible Accelerometer ±20g Range

Product Attributes

Attribute	Value
Power Voltage	±12~±18V DC
Operating Temperature	-45°C~+80°C
Storage temperature	-55°C～+80°C
Shock	100g
Vibration Peak Sine	15g@20Hz ~ 2000Hz

Product Description

KSACC112Q Quartz Flexible Accelerometer is a precision instrument comprising quartz glass flexible support and advanced servo circuit based on the principle of inertia. When the carrier is subjected to acceleration, the output is precisely proportional to the input acceleration. The accelerometer features current output with high output impedance, allowing users to select sampling resistance according to requirements without affecting system stability.

Product Series

Our quartz flexible accelerometer series includes products ranging from high-precision μg KSACC111Q accelerometers for satellite microgravity measurement to low-cost, harsh environment-resistant KSACC117Q accelerometers. These are widely used in aerospace, aviation, navigation, marine, vehicle, petroleum, and geotechnical engineering applications, providing signals for navigation, guidance, control, leveling, and monitoring systems.

Key Features

Excellent index repeatability
Analog output
Built-in digital temperature sensor
Wide load resistance range
Triangle precision mounting flanges
Application in next-generation weapon inertial navigation systems
Two models available

Applications

Inertial monitoring systems
Inertial navigation systems
Flight control systems
Vibration monitoring
Oil drilling platforms and geological exploration
Inertial measurement units
Motion monitoring equipment

Technical Specifications

Power Supply Parameters
Power Voltage	12~18VDC
Power at 25°C	90mW
Supply current	6mA
Product Performance
Range	±20g
Size	Ø25.4×30
Bias	<5mg
Bias stability	≤10ug
Bias temperature sensitivity	10ug/°C
Bias repeatability	≤10ug
Scale factor	1.2～1.6mA/g
Scale factor temperature sensitivity	10ppm/°C
Second order nonlinear coefficient	≤10μg/g²
Second order nonlinearity coefficient repeatability	≤5μg/g²
Scale factor repeatability	10ppm
Noise	<1μg
Threshold	<1 μg
Bandwidth	<200 Hz
Weight	≤70g
Environmental Specifications
Operating temperature	-45°C～80°C
Storage temperature	-55°C～80°C
Random vibration	15g(20~2000Hz)
Sine vibration	10g peak,50 to 800Hz
Working shock	50g
Shock	100g

Dimensions

Unit: mm
