Place of Origin:
CHINA
브랜드 이름:
kacise
인증:
ce
Model Number:
KSGYR312M
| Input voltage | 5Vdc |
| Incoming current | <10 mA |
| Offset voltage | 1.65±0.02V |
| Output voltage | 0.66～2.64V |
| Range | ±300X、Y、Z°/s |
| Size | 43×30.5×30.5mm |

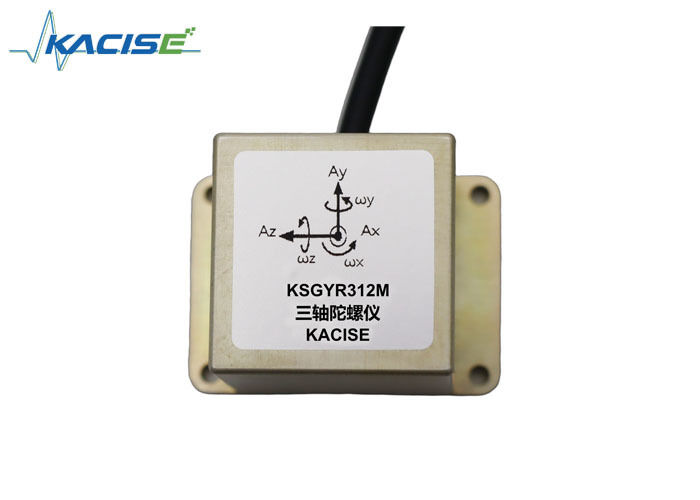

The KSGYR312M series three-axis universal angular rate gyro is developed by Kacise for measuring three-axis angular rates. Each axis utilizes MEMS technology chips, offering high performance, low cost, high reliability, and rugged packaging with Self-Test functionality.
The KSGYR312M operates on the resonator gyro principle, featuring two polysilicon sensitive structures with high-frequency vibrating frames. These frames generate Coriolis motion at angular rates, producing electrical signals that are amplified and modulated to output signals proportional to angular rate.
| Power Supply Parameters | |
|---|---|
| Power Voltage | 5V DC |
| Power at 25°C | 50mW |
| Supply current | ≤10mA |
| Output Range | 0.66～2.64(V) |
| Product Performance | |
| Range | ±300°/s |
| Size | 43mm×30.5mm×30.5mm |
| Run-up time | 0.005s |
| Bias | 1.65±0.02V dc |
| Bias stability | ≤12°/h |
| Bias temperature sensitivity | ≤1°/s |
| Scale factor | 3.3mV/°/s±0.05mV/°/s |
| Scale factor nonlinearity | ≤0.05% |
| Noise | ≤0.02°/s/g |
| Threshold | ≤2% |
| Resolution | ≤0.02°/s/√Hz；≤0.1°/s |
| Bandwidth | ≥80Hz |
| Weight | <50g |
| MTBF | 100000h |
| Environmental Specifications | |
| Operating temperature | -45°C～+85°C |
| Storage temperature | -65°C~+125°C |
| Shock resistance | 20000g |
| Color | Red | Black | Blue | Yellow | White | Shield |
|---|---|---|---|---|---|---|
| Signal Name | +12Vdc | Power and signal Ground | ωXOUT | ωYOUT | ωZOUT | Shell ground |
