Place of Origin:
CHINA
브랜드 이름:
KACISE
인증:
CE
Model Number:
KSGYR103F
| Attribute | Value |
|---|---|
| Supply voltage | +5(V) |
| Dimensions | 60×60×32 mm |
| Start time | ≤3 s |
| Bias stability (10s smooth -45°C~+70°C) | ≤0.5 °/h |
| Power dissipation (full temperature) | <4 W |
| Operate temperature | -45°C ～ +70°C |

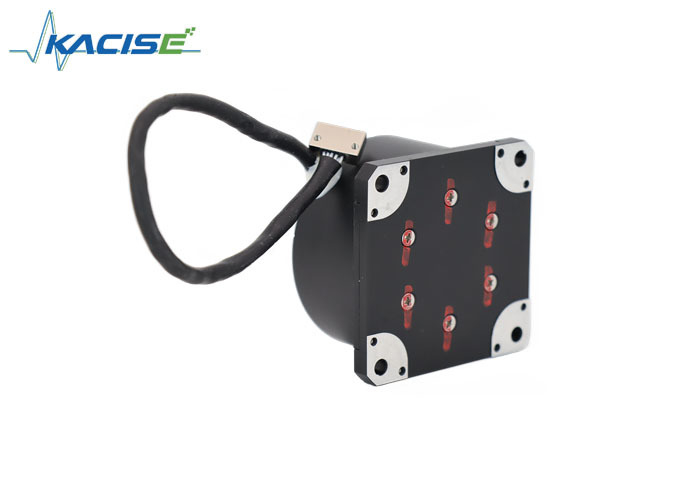

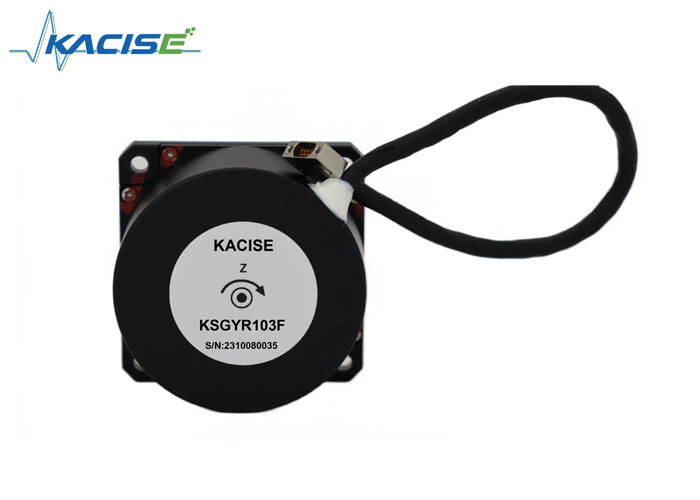

The KSGYR103F is an inertial angle rate sensor based on the optical Sagnac effect, designed to measure rotational angular velocity along the sensitive axis. It utilizes a digital closed-loop detection circuit to extract optical path differences caused by external physical angular speed, enabling real-time angular velocity signal detection.
| Power supply parameters | |
| Supply voltage | +5(V) |
| Product performance | |
| Dimensions | 60×60×32 mm |
| Start time | ≤3 s |
| Bias (10s smooth, fix temperature) | ≤0.1 °/h |
| Bias stability (10s smooth -45°C~+70°C) | ≤0.5 °/h |
| Bias repeatability | ≤0.1 °/h |
| Random walk | ≤0.01 °/h1/2 |
| Scale factor non-linearity | ≤10 ppm |
| Scale factor repeatability | ≤10 ppm |
| Dynamic range | ±500 °/s |
| Power dissipation (full temperature) | <4 W |
| Weight | <180g |
| Environmental specifications | |
| Operate temperature | -45°C ～ +70°C |
| Storage temperature | -50°C ～ +80°C |
