Place of Origin:
CHINA
브랜드 이름:
KACISE
인증:
CE
Model Number:
KSGYR106F

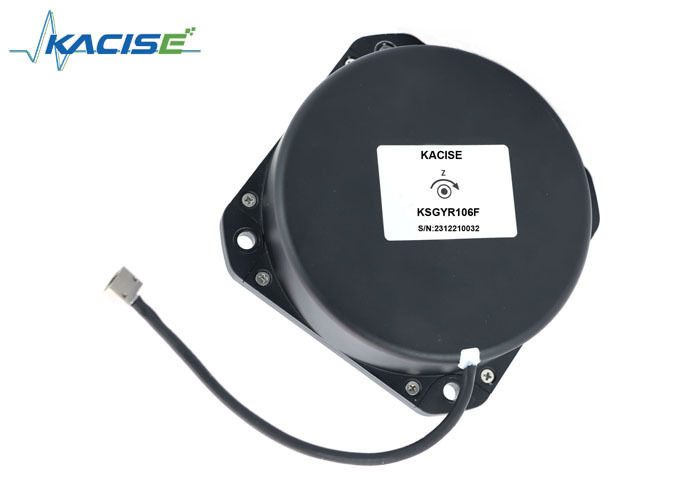

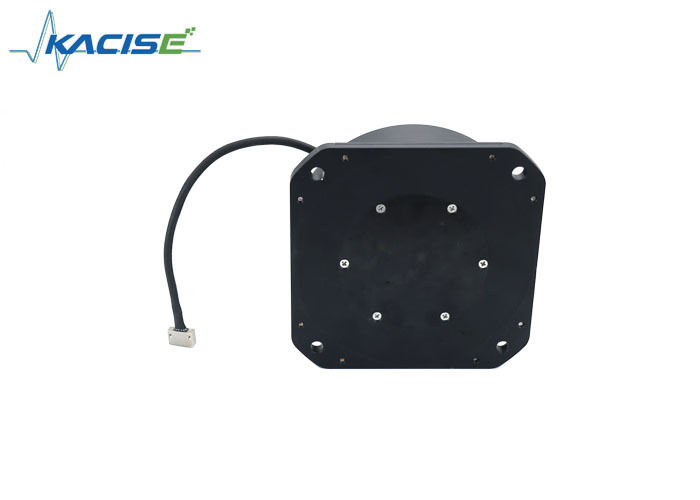

The KSGYR106F Series is an inertial angle rate sensor based on the optical Sagnac effect, designed to measure rotational angular velocity along its sensitive axis. This advanced sensor utilizes a digital closed-loop detection circuit to precisely extract optical path differences caused by external physical angular speed, enabling real-time angular velocity signal detection.
| Attribute | Value |
|---|---|
| Supply voltage | +5V |
| Dimensions | 120×120×38mm |
| Start time | ≤5s |
| Weight | <1000g |
| Power dissipation (full temperature) | <6W |
| Operate temperature | -45°C～+70°C |
| Parameter | KSGYR106F-H | KSGYR106F-HH |
|---|---|---|
| Power supply parameter | ||
| Supply voltage | +5V DC | +5V DC |
| Product performance | ||
| Dimensions | 120×120×36mm | 120×120×36mm |
| Start time | 3s | 3s |
| Bias (10s smooth, fix temperature) | <0.01°/h | <0.005°/h |
| Bias stability (10s smooth -45°C~+70°C) | <0.005°/h(10s) <0.0015°/h(100s) | <0.003°/h(10s) <0.001°/h(100s) |
| Bias repeatability | <0.0015°/h | <0.001°/h |
| Random walk | <0.0003°/√h | <0.0002°/√h |
| Scale factor non-linearity | <2ppm | <2ppm |
| Scale factor repeatability | <5ppm | <5ppm |
| Dynamic range | ±300°/s | ±300°/s |
| Power dissipation (full temperature) | <4W | <4W |
| Weight | 890g±20g | 890g±20g |
| Environment | ||
| Operating temperature | -45°C～+70°C | -45°C～+70°C |
| Storage temperature | -55°C～+80°C | -55°C～+80°C |
