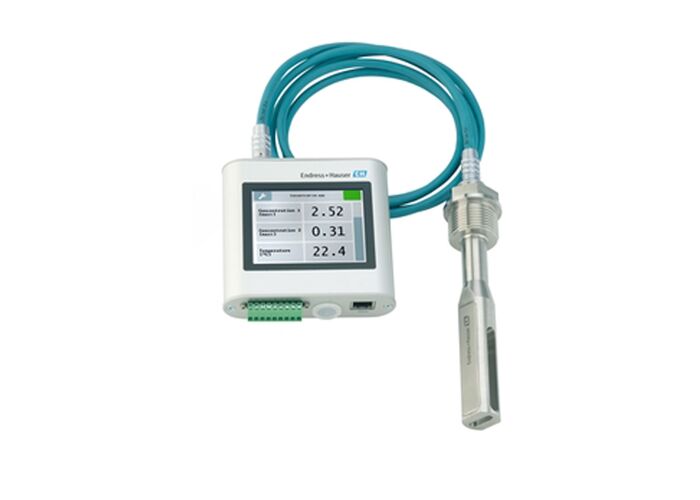

Teqwave I – Ultrasonic concentration meter

Ultrasonic concentration meter Teqwave I

Ultrasonic flow meter with warranty

Teqwave I concentration measurement device

원래 장소:

스위스

브랜드 이름:

Endress+Hauser

인증:

저희와 연락

인용 을 요청 하십시오

Teqwave I – Ultrasonic concentration meter

제품 세부 정보

공정 온도:

0~100°C(32~212°F)

프로세스 압력:

최대. 20°C에서 16bar(68°F에서 232psi)

디스플레이 / 작동:

LED 상태 표시TFT 컬러 터치 디스플레이

출력:

Modbus TCP, 릴레이(AC 50V, DC30V 1A), 4-20mA/0~10V 아날로그 출력

강조하다:

Ultrasonic concentration meter Teqwave I

Ultrasonic flow meter with warranty

Teqwave I concentration measurement device

지불 및 배송 조건

최소 주문 수량

1개

포장 세부 사항

각 장치에는 개별 상자가 있으며 모든 상자에는 표준 패키지에 포장되거나 고객 요청이 가능합니다.

배달 시간

5-8 근무일

지불 조건

L/C,D/A,D/P,T/T,웨스턴 유니온,MoneyGram

공급 능력

주당 1000 조각/조각 협상 가능

Proline Prosonic Flow E 100 ultrasonic flowmeter

가장 좋은 가격 을 구하라

Proline Prosonic Flow G 300 ultrasonic flowmeter

가장 좋은 가격 을 구하라

Proline Prosonic Flow G 500 ultrasonic flowmeter

가장 좋은 가격 을 구하라

Proline Prosonic Flow I 400 ultrasonic flowmeter

가장 좋은 가격 을 구하라

저희와 연락

지금 연락하세요

제품 설명

Teqwave I – Ultrasonic Concentration Meter

The Teqwave I insertion measuring device delivers precise real-time liquid analysis for vessels and larger pipes. This advanced ultrasonic concentration meter provides continuous monitoring of multiple parameters simultaneously, reducing operational costs while ensuring product quality.

Key Specifications

Maximum Measurement Error	Acoustic density: ±0.01g/cm³ Temperature: ±0.5K Sound velocity: ±2m/s
Measuring Range	Concentration: 0 to 100% Sound velocity: 600 to 2000 m/s Temperature: 0 to +100°C (32 to +212°F) Acoustic Density: 0.7 to 1.5 g/cm³
Process Conditions	Temperature: 0 to 100°C (32 to 212°F) Pressure: max. 16 bar at 20°C (232 psi at 68°F)
Wetted Materials	Stainless steel 1.4571 (316 Ti), others available on request

Primary Benefits

Easy and efficient - Real-time in situ liquid analysis
Full transparency - Constant monitoring of product quality without sampling
Highest process safety - Reliable metering with robust, maintenance-free sensor
Cost-saving - Fewer measuring points due to multivariable measurement
Customized usage - Innovative application concept, expandable for changing measuring tasks
Simplified process control - User-friendly operation and clear status visualization
Local data backup - Integrated storage for measured values up to 7.5 years

Technical Features

Sensor Specifications

Insertion lengths: 180 mm (7 in) or 500 mm (20 in)
Accurate measurement independent of flow profile
Material: Stainless steel 1.4571 (316Ti)
Ingress protection: IP68 (with plugged-in cable)

Transmitter Features

Industry-compliant DIN rail installation
3.5" TFT color touch screen or LED indication
Outputs: 4-20 mA, Modbus TCP, Relay (AC 50V, DC30V 1A), 0 to 10V Analog
Housing material: Anodized aluminum and glass
Ingress protection: IP40

Measurement Capabilities

The Teqwave I simultaneously measures concentration, sound velocity, temperature, acoustic density, and dispersion using advanced ultrasonic technology. Its acoustic waveguide detects even the smallest changes with exceptional precision.

Electrical & Safety

Power Supply	DC 24V ±20%
Certifications	CE, UKCA, RCM
Ex Certification	Non-hazardous area
