Name: Surface Scattering Light Turbidity Detector with 0-2000 NTU Range and LED Light Source for Water Quality Analysis
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: TB830D
Price: 5,000.00 USD
Availability: InStock

집 > 상품 > 수질 감지 센서 >

Surface Scattering Light Turbidity Detector with 0-2000 NTU Range and LED Light Source for Water Quality Analysis

0-2000 NTU range Turbidity Detector

Surface scattering method Turbidity Analyzer

LED light source Water Quality Sensor

브랜드 이름:

Yokogawa

모델 번호:

TB830D

저희와 연락

인용 을 요청 하십시오

Surface Scattering Light Turbidity Detector with 0-2000 NTU Range and LED Light Source for Water Quality Analysis

제품 세부 정보

측정 방법:

표면 산란 방법

측정 범위 (탁도 표준 : 포르 마진):

0-2 ~ 0-2000 NTU

온도:

0 ~ 50 ° C

유량:

1.5 ~ 2 L/분

압력:

500 kPa Max

강조하다:

0-2000 NTU range Turbidity Detector

Surface scattering method Turbidity Analyzer

LED light source Water Quality Sensor

지불 및 배송 조건

최소 주문 수량

1pcs

포장 세부 사항

각 장치에는 개별 상자가 있으며 모든 상자에는 표준 패키지에 포장되거나 고객 요청이 가능합니다.

배달 시간

5-8 일

지불 조건

L/C, D/A, D/P, T/T, Western Union, MoneyGram

공급 능력

주당 1000 조각/조각 협상 가능

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

가장 좋은 가격 을 구하라

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

가장 좋은 가격 을 구하라

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

가장 좋은 가격 을 구하라

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

가장 좋은 가격 을 구하라

저희와 연락

86--17719566736

지금 연락하세요

제품 설명

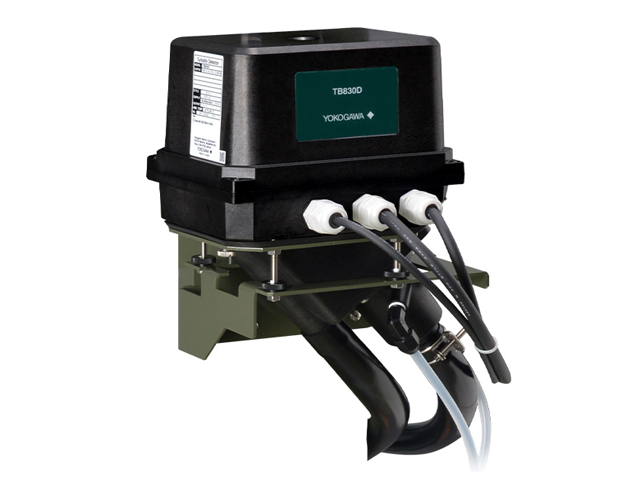

Surface Scattering Light Turbidity Detector TB830D

Reduce maintenance - Digital solution for water quality

Many of our customers face these challenges - Yokogawa Turbidity Analyzers TB800 series resolve them.

Yokogawa's turbidity meters have been developed and improved to suit various applications in water treatment plant turbidity measurement. As a result, we have accumulated many achievements and gained the trust of our customers since our first product was launched in 1959.

Japan's most trusted turbidimeter*.

The TB830D is part of the SENCOM4.0 platform family and can connect to FLXA402T. Thanks to a smart unit equipped detector, TB830D gives you more insight into the ordinary operation.

The TB830D is a turbidity analyzer that equipped LEDs as the light source, is dirt-resistant, and offers reliable measurements and reduced OPEX due to the addition of advanced diagnostic functions.

*Based on a Yokogawa survey in 2019

Less susceptible to contamination due to non-contact with the sample

Compatible with various applications

Surface scattering measurement method minimizes contamination
LED light source for 3-year long life and reduced maintenance costs
High sensitivity and high accuracy with long-standing reliability
Good linearity and reproducibility
Measuring range from 0-2 NTU to 0-2000 NTU
Improved cleaning system reduces maintenance
Easy-to-clean cell structure (by GS)

Multi sensor input

Not only Turbidity Detector but also Chlorine Sensor Unit, pH sensor and conductivity sensor are connectable to one transmitter.

Application

Turbidity of tap water, sewage, river water and water used in general processes.

Water Purification Treatment

Sedimentation
Flocculation
Settling Basins
Clean water reservoir
Distributing pump
Distribution tank & Piping

Wastewater Treatment

Discharge/Reuse

Specifications

Measuring method	Surface scattering method
Measuring Range (Turbidity standard: Formazin)	0-2 to 0-2000 NTU
Sample Conditions	Temperature: 0 to 50°C Flow Rate: 1.5 to 2 L/min Pressure: 500 kPa max
Power Supply	100 to 240 V DC, 50/60 Hz
Digital Communication	Modbus TCP/IP, Modbus RTU
Installation	Indoor (Outdoor use requires protection against rain. Direct sunlight must be avoided.)
Cleaning system	Automatic wash

Performance

Linearity	0-1000 NTU: ±2% of reading or ±0.04 NTU whichever is greater over 1000 NTU: ±4% of reading
Repeatability	±1% of reading or ±0.02 NTU whichever is greater
