Name: IP67 Portable Conductivity Meter SC92 with Wide Measuring Range and Large Backlit Display
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: SC92
Price: 5,000.00 USD
Availability: InStock

집 > 상품 > 수질 감지 센서 >

IP67 Portable Conductivity Meter SC92 with Wide Measuring Range and Large Backlit Display

IP67 Portable Conductivity Meter

Wide Measuring Range SC92

Large Backlit Display Water Quality Sensor

브랜드 이름:

Yokogawa

모델 번호:

SC92

저희와 연락

인용 을 요청 하십시오

IP67 Portable Conductivity Meter SC92 with Wide Measuring Range and Large Backlit Display

제품 세부 정보

측정:

수성 용액의 전도도 또는 저항

저항:

0.001 MΩ ω cm ~ 40.0 MΩ ・ cm (고순도 수량 측정을위한 센서 포함)

전도도:

풀 스케일의 ± 2%. (범용 센서의 경우 0 ° 200ms/cm 범위의 전체 스케일의 ± 5%

온도 보상:

0.00 ~ 10.00% /℃ (참조 온도 변환 : 15 ~ 30 ℃)

건설:

IP67

연결 가능한 센서:

SC92SN

강조하다:

IP67 Portable Conductivity Meter

Wide Measuring Range SC92

Large Backlit Display Water Quality Sensor

지불 및 배송 조건

최소 주문 수량

1pcs

포장 세부 사항

각 장치에는 개별 상자가 있으며 모든 상자에는 표준 패키지에 포장되거나 고객 요청이 가능합니다.

배달 시간

5-8 일

지불 조건

MoneyGram, Western Union, T/T, D/P, L/C, D/A.

공급 능력

주당 1000 조각/조각 협상 가능

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

가장 좋은 가격 을 구하라

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

가장 좋은 가격 을 구하라

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

가장 좋은 가격 을 구하라

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

가장 좋은 가격 을 구하라

저희와 연락

86--17719566736

지금 연락하세요

제품 설명

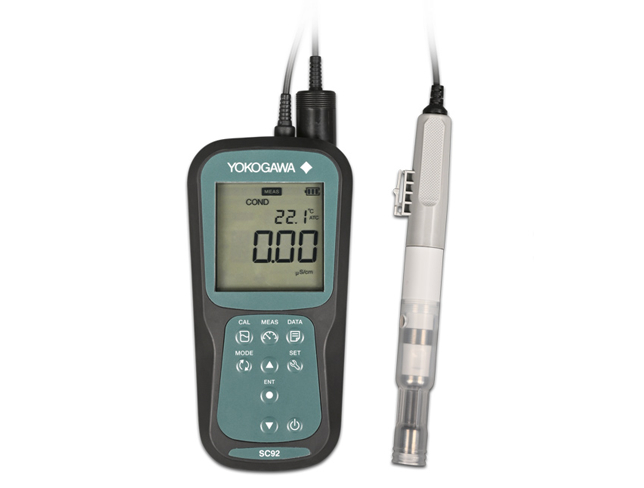

Portable Conductivity Meter SC92

Wide Measuring Range, Your Daily Measuring Partner

Tough and Easy-to-Use Portable Conductivity Meter (SC Meter)

A wide range of conductivity can be measured, from pure water to seawater. Our long-selling Personal Conductivity Meter has been redesigned as a Portable Conductivity Meter with enhanced ease of use.

Connecting the appropriate sensor for the application can measure the entire conductivity range of 0-2 S/cm and retain accuracy when measuring 0-2 µS/cm or resistivity.

This handheld conductivity meter has an IP67 (waterproof and dustproof) structure for both body and the sensor. If it is dirty, it can be washed with water. The general-purpose type sensor and high pure water measurement sensor have plastic bodies to prevent accidental damage. The detectors can be attached to the main body, making them easy to carry around.

The large backlit display shows measured values, stability check signs, and electrode sensitivity level indicators on the main screen, providing an easy-to-read collection of information to support measurements.

The tough design makes it suitable for validating inline conductivity analyzers and for grab-sample analysis, as well as for quality control of drinking water and pure water and for lab analyses.

Key Features

Large, Backlit, Easy-to-Read Display - The letters are large and easy to read in the dark and daylight.
Stability Check Function for Accurate Calibration/Measurement - It informs you when the measurement has stabilized and allows you to calibrate/measure with the correct values.
Electrode Sensitivity Level Indicator Function - The sensitivity of the connected detector is displayed using easy-to-understand icons based on the calibration data, which helps you to know when to replace the sensor.
Durable Plastic Sensor and Built-in Sensor Holders - It can be taken out and measured immediately. Less bulky and convenient to carry.
Various Buttons for Ease of Use - The interface is intuitive and easy to understand, with calibration mode/measurement mode/data display mode switchable at the touch of a button.
Excellent Grip, with a Stand on the Back - It features an easy-grip shape, ensuring it won't slip or drop, and can be easily measured with one hand.

YOKOGAWA's Technology Enables Stable and Accurate Measurements

Conductivity measurement for pure water
Conductivity measurement for drinking water
Conductivity measurement for lab analyses
Validation and sample calibration for inline conductivity analyzers

Specifications

Model	SC92
Measurement	Conductivity or resistivity in aqueous solution
Measuring Range (Conductivity)	General-purpose type sensor: 0-20.00 µS/cm to 0-200.0 mS/cm Sensor for high purity water measurement: 0-2.00 µS/cm to 0-200.0 µS/cm Chemical-resistant type sensor: 0-20.00 µS/cm to 0-200.0 mS/cm Sensor for high conductivity measurement: 0-200.0 µS/cm to 0-2.000 S/cm
Resistivity	0.001 MΩ・cm to 40.0 MΩ・cm (with a sensor for high purity water measurement)
Temperature	0 to 80℃ (sensor combination dependent) (0 to 50℃ when the entire sensor is submerged in water)
Repeatability (Combined with sensors)	Conductivity: ±2% of full scale (±5% of full scale of the 0-200 mS/cm range for general purpose type sensor) Temperature accuracy: Simulated input for main unit only; ±0.5 ℃±1 digit Combined with sensors; ±1.0 ℃ (0 to 70 ℃), ±1.3 ℃ (above 70℃)
Temperature compensation	0.00 to 10.00% /℃ (reference temperature conversion: 15 to 30℃)
Functions	Display Conductivity or Resistivity and solution temperature (simultaneously), Electrode sensitivity level indicator, Stability check function, Data Memory(500 points)
Construction	IP67
Connectable sensor	SC92SN
Power source	2 x AA batteries (LR6), Auto power off function (time configurable: 1 to 30 minutes)
Battery life	Approximately 500 hours
