PH8EHP pH Sensor for High Purity Water with Pt1000 Temperature Compensation and SENCOM4.0 Digital Communication

Pt1000 pH Sensor

SENCOM4.0 Water Quality Sensor

SA11 Adapter PH8EHP Sensor

저희와 연락

인용 을 요청 하십시오

PH8EHP pH Sensor for High Purity Water with Pt1000 Temperature Compensation and SENCOM4.0 Digital Communication

제품 세부 정보

계측 온도:

0 ~ 50 ℃

압력 측정:

기압

온도 보상 센서:

PT1000

무게:

대략 0.4kg

디지털 커뮤니케이션 기능:

SENCOM4.0을 지원합니다 (바리오핀 커넥터 및 SA11 어댑터가 연결됨)

강조하다:

Pt1000 pH Sensor

SENCOM4.0 Water Quality Sensor

SA11 Adapter PH8EHP Sensor

지불 및 배송 조건

최소 주문 수량

1pcs

포장 세부 사항

각 장치에는 개별 상자가 있으며 모든 상자에는 표준 패키지에 포장되거나 고객 요청이 가능합니다.

배달 시간

5-8 일

지불 조건

L/C, D/A, D/P, T/T, Western Union, MoneyGram

공급 능력

주당 1000 조각/조각 협상 가능

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

가장 좋은 가격 을 구하라

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

가장 좋은 가격 을 구하라

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

가장 좋은 가격 을 구하라

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

가장 좋은 가격 을 구하라

저희와 연락

86--17719566736

지금 연락하세요

제품 설명

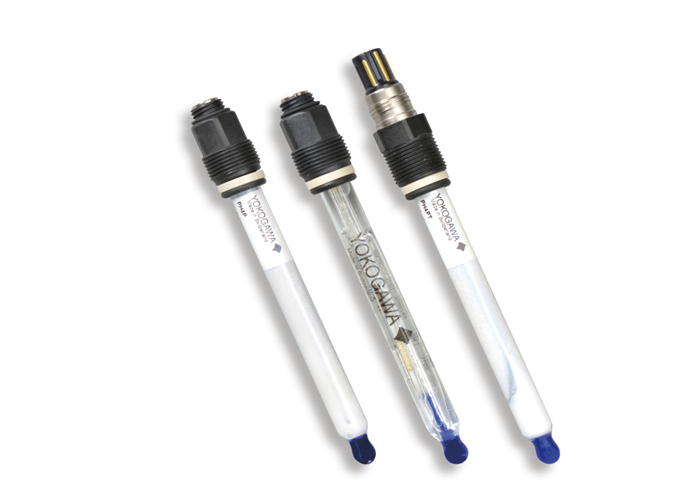

pH Sensor for High Purity Water PH8EHP

Yokogawa's process pH Analyzers are highly reliable and feature advanced functions for water quality management in production processes, wastewater treatment plants, and general purpose pH control systems. Based on years of experience, Yokogawa offers comprehensive solutions tailored to specific applications.

The PH8EHP pH sensor and PH8HH holder provide reliable pH measurement for high purity water used in boilers and semiconductor processes. When combined with the SENCOM Smart Adapter SA11, these sensors can function as digital detectors with Variopin connectors.

Key Features

Dedicated holder solves measurement challenges in high-purity water applications
Temperature compensation when used with PH450G and PH202 pH/ORP analyzers
Digital detection capability when combined with SENCOM Smart Adapter SA11

Technical Specifications

1. pH Sensor PH8EHP for High Purity Water

Parameter	Specification
Measuring temperature	0 to 50℃
Measuring pressure	Atmospheric pressure
Temperature compensation sensor	Pt1000
Weight	Approx. 0.4 kg
Digital communication function	Supports SENCOM4.0 (with Variopin connector and SA11 adapter)

2. Holder PH8HH for High Purity Water

Parameter	Specification
Material	Acrylic resin, 316SS, chloroprene rubber
Process connections	Inlet: Rc1/4 or 1/4NPT (F) Outlet: Rc1/2 or 1/2NPT (F)
Mounting method	50A (2-inch) vertical/horizontal pipe mounting or wall mounting (bracket specified separately)
Weight	Approx. 1.7 kg
