Name: Differential pH and ORP Sensor with 2-14 pH Range -1500 to 1500 mV ORP and 0 to 105°C Temperature for Water Quality Monitoring
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: fu20-fts
Price: 5,000.00 USD
Availability: InStock

집 > 상품 > 수질 감지 센서 >

Differential pH and ORP Sensor with 2-14 pH Range -1500 to 1500 mV ORP and 0 to 105°C Temperature for Water Quality Monitoring

pH Range 2-14 Differential pH and ORP Sensor

ORP Range -1500 to 1500 mV Water Quality Sensor

Temperature Range 0 to 105°C Cation Differential Sensor

브랜드 이름:

Yokogawa

모델 번호:

fu20-fts

저희와 연락

인용 을 요청 하십시오

Differential pH and ORP Sensor with 2-14 pH Range -1500 to 1500 mV ORP and 0 to 105°C Temperature for Water Quality Monitoring

제품 세부 정보

측정 이론:

양이온 참조

pH 범위:

2-14

ORP 범위:

-1500 ~ 1500 MV

온도 범위:

0 ~ 105 ° C (14 ~ 221 ° F)

강조하다:

pH Range 2-14 Differential pH and ORP Sensor

ORP Range -1500 to 1500 mV Water Quality Sensor

Temperature Range 0 to 105°C Cation Differential Sensor

지불 및 배송 조건

최소 주문 수량

1pcs

포장 세부 사항

각 장치에는 개별 상자가 있으며 모든 상자에는 표준 패키지에 포장되거나 고객 요청이 가능합니다.

배달 시간

5-8 일

지불 조건

L/C, D/A, D/P, T/T, Western Union, MoneyGram

공급 능력

주당 1000 조각/조각 협상 가능

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

가장 좋은 가격 을 구하라

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

가장 좋은 가격 을 구하라

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

가장 좋은 가격 을 구하라

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

가장 좋은 가격 을 구하라

저희와 연락

86--17719566736

지금 연락하세요

제품 설명

Differential pH and ORP Sensors

Yokogawa's cation differential pH and ORP sensors are engineered for challenging applications where conventional sensors fail. These specialized sensors excel in diverse environments ranging from brine solutions to electrolysis processes and cheese manufacturing.

Common measurement challenges in these applications typically stem from reference cell issues, including:

High diffusion potentials at the reference junction
Elevated temperatures (common in chlorinated brine processes)
High ground-loop currents

Our differential sensors feature a sealed glass reference system with no liquid junction or process-exposed electrolyte. This innovative design eliminates diffusion potentials and fouling, ensuring stable measurements with minimal maintenance requirements.

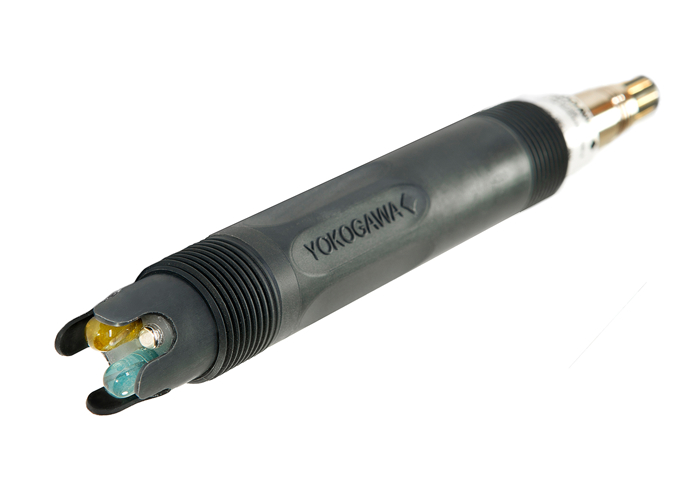

FU20-FTS Differential Sensor

FU20-FTS

The FU20-FTS represents Yokogawa's latest advancement in pH sensor technology, combining the precision of our 12mm differential sensor with the durability of our renowned FU20 wide-body design.

While Yokogawa utilizes proven silver/silver chloride reference cells for cost-effective performance across most applications, our differential technology provides superior longevity in demanding conditions. Conventional sensors require frequent maintenance to prevent reference poisoning, whereas differential sensors offer significant advantages in high-temperature, high-pressure industrial applications.

Key Advantages

No junction - eliminates junction-related failures
Completely sealed design prevents process contamination
Eliminates reference element poisoning
No diaphragm - prevents plugging or coating issues
No electrolyte outflow - prevents depletion problems

FU20-FTS Specifications
Measurement Theory	Cation Reference
pH Range	2-14
ORP Range	-1500 to 1500 mV
Temperature Range	0 to 105°C (14 to 221°F)
Pressure Range	0 to 10 bar (0 to 145 PSIG) @ 25°C 0 to 5 bar (0 to 72 PSIG) @ 105°C
