원래 장소:
중국
브랜드 이름:
KACISE
모델 번호:
KWS-950S

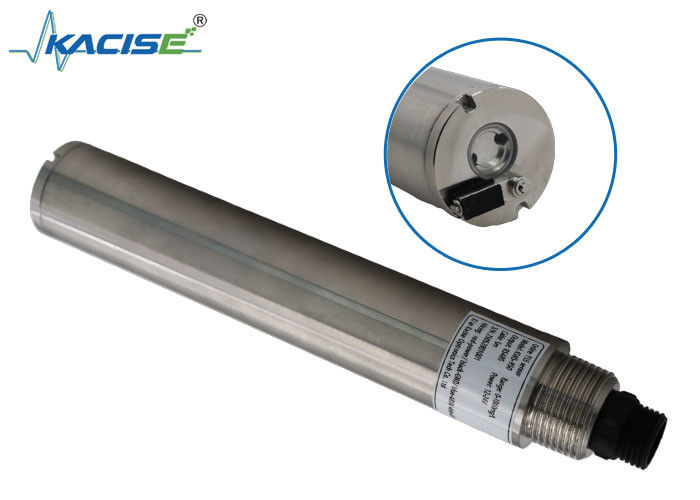

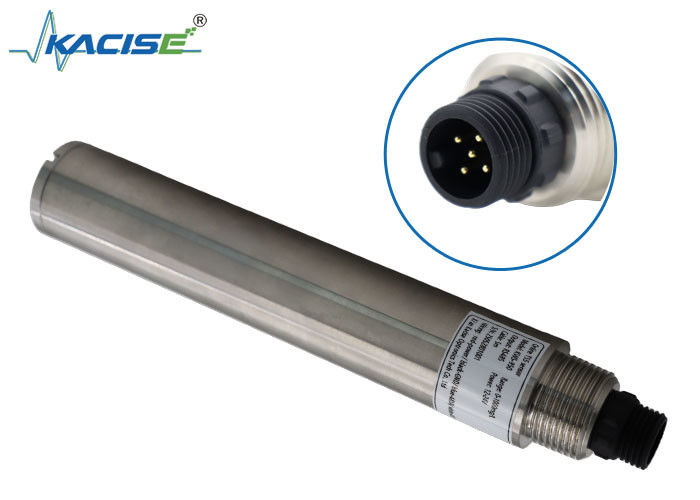

KWS-950S 온라인 TSS 센서
소개
KWS-950 통합 온라인 TSS 센서는 산란광 현탁액 측정 원리를 사용하여 설계 및 제조되었습니다. 빛이 물 샘플에 닿으면 빛이 물 샘플의 부유 물질에 의해 산란되고, 입사광에 수직인 산란광의 강도를 측정하고 내부 보정 값과 비교하여 산란광을 계산하여 최종 값을 출력하도록 선형화됩니다.
특징
기술 사양
2odel | KWSe950S |
2easuring principle | Scattered light method |
2easuring range | 0 to 2000 mg / L |
Resolution | 0.1 mg/L, 0.1 5C |
Precision | ± 5% |
Calibration mettd | Twoepoint calibration |
Temmrature compensation | Automatic temperature commnsation (Pt1000 ) |
mtput mettd | RSe485 (2odbus/ RTU ) |
Working conditios | 0 to 50 5C, , 0 022Pa |
storre temmrature | e 5 to to5 5C |
IItaaation mettd | Immersion mmnnng, 3/4" NPT thread |

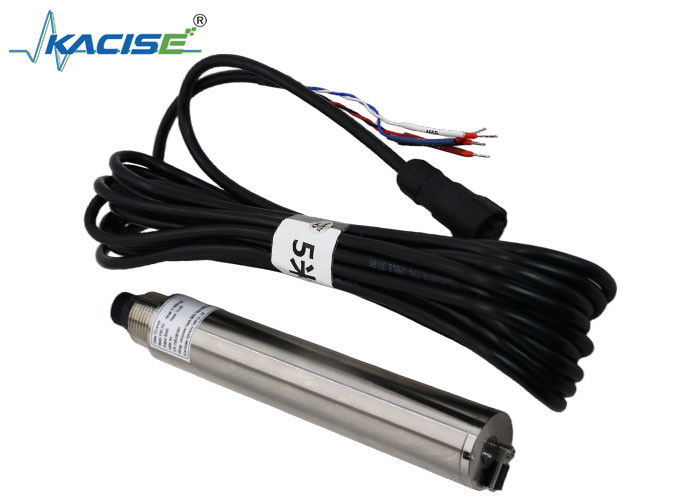

Cable length | 5 meters, other lengths can be customized |
Power consumption | < 0.5 W |
power supply | 1 2 to 24 VDC ± 10% |
Protection level | IP68 |
Casing Material | Stainless steel |
Self-Cleaning Function | Selectable |
